1
Engine displacement
1000
2
Model
CALIFORNIA
3
Year
1987
4
Trim
California III Carburatori
5
Parts Catalog
Saddlebags-rear bumper,1st s.
6
Parts Diagram
Parts Catalog
by
Saddlebags-rear bumper,2nd s.
Saddlebags-rear bumper,1st s.
1
4
5
6
7
8
9
9
10
10
10
10
11
12
13
14
15
16
17
18
1
Suitcase kit
GU29999260
Not Available
4
Decal "Aquila"
GU29482000
Not Available
5
RH support
GU29485050
Not Available
6
LH support
GU29486550
Not Available
7
Screw complete
GU29486100
Not Available
8
Rear bumper
GU29458251
Not Available
9
Nut
GU92630508
£1,67 Unit Price incl. VAT
10
Washer
GU95004208
£0,70 Unit Price incl. VAT
11
Pillion grab bar
GU29464350
Not Available
12
screw
GU98820430
Not Available
13
Nut
GU92781081
£10,21 Unit Price incl. VAT
14
Luggage rack
GU29466550
Not Available
15
screw
GU98230816
£1,58 Unit Price incl. VAT
16
Spring washer 8x15x0,3
GU61270300
£1,70 Unit Price incl. VAT
17
Top screw
GU98230822
Not Available
18
Washer
GU95110255
£5,83 Unit Price incl. VAT

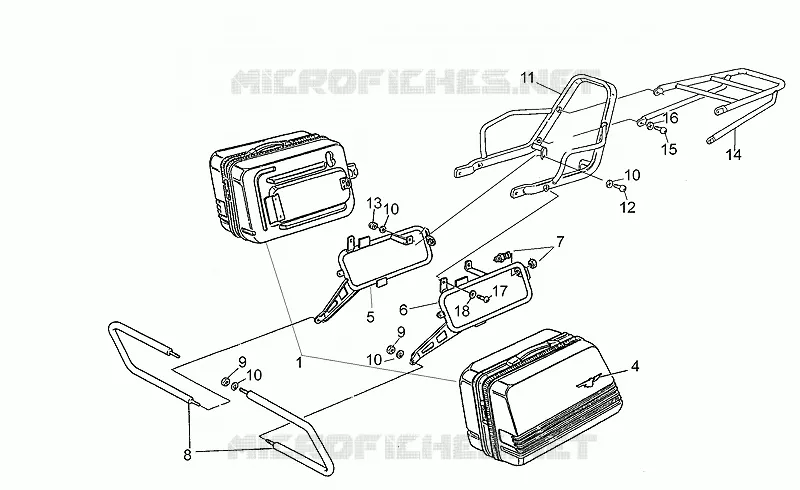

Find the detailed Saddlebags-rear bumper,1st s. MOTO GUZZI LAVERDA SCARABEO diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original MOTO GUZZI LAVERDA SCARABEO part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
