Parts Catalog
Crankshaft cpl.
6

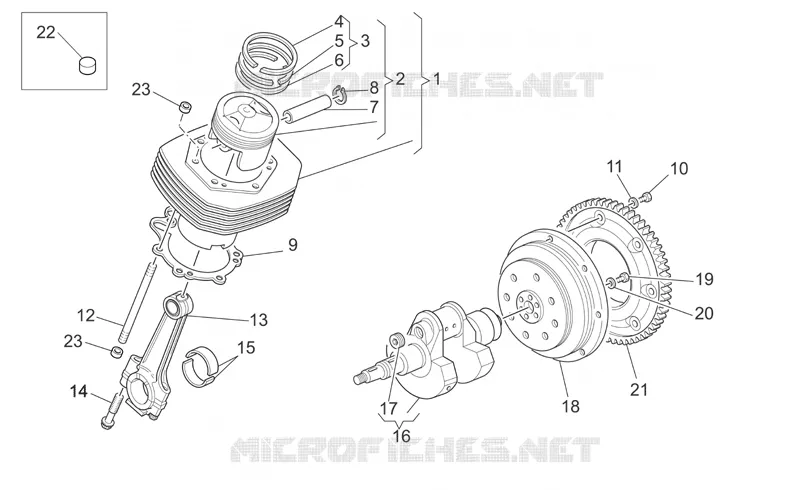

Parts Diagram
Parts Catalog
Oil pump I
by
Front master cilinder
Crankshaft cpl.
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
22
23
1
Cylinder - piston assy
976157
£248,05 Unit Price incl. VAT
1
Cylinder with piston
976195
Not Available
2
Piston assy
976085
£443,65 Unit Price incl. VAT
3
Pistonring set
GU05060630
£98,47 Unit Price incl. VAT
4
Piston ring
GU05060730
£44,22 Unit Price incl. VAT
5
Piston ring
GU05060930
£57,47 Unit Price incl. VAT
6
Piston ring
GU05061030
Not Available
7
Piston pin
GU30061241
£114,19 Unit Price incl. VAT
8
Stop ring
GU90351039
Not Available
9
Gasket
976064
£70,37 Unit Price incl. VAT
9
Gasket
GU05020830
£72,73 Unit Price incl. VAT
10
screw
GU37067705
£0,42 Unit Price incl. VAT
11
Washer 6,4x10x0,7
GU14217901
Not Available
12
Stud bolt
976031
£21,44 Unit Price incl. VAT
13
Connecting rod cpl.
976006
£731,65 Unit Price incl. VAT
14
Connecting rod screw
849131
£32,42 Unit Price incl. VAT
15
Bearing half-shell 1,539-1,544
976171
£37,64 Unit Price incl. VAT
15
Bearing half-shell 1,535-1,540
976172
£41,33 Unit Price incl. VAT
16
Crankshaft cpl.
976119
£432,64 Unit Price incl. VAT
17
Cover
976020
£15,08 Unit Price incl. VAT
18
Flywheel cpl.
GU04067000
£886,46 Unit Price incl. VAT
19
screw
GU12067701
£0,72 Unit Price incl. VAT
20
Washer 8,4X13X0,8
GU14615901
£2,48 Unit Price incl. VAT
21
Chain ring
GU01067930
£632,70 Unit Price incl. VAT
22
Rubber spacer
GU05025330
£3,91 Unit Price incl. VAT
23
Pin 11,8X10
825597
£2,35 Unit Price incl. VAT
