Engine displacement
1100
2
Model
BREVA
3
Year
2006
4
Trim
Breva V IE
5
Parts Catalog

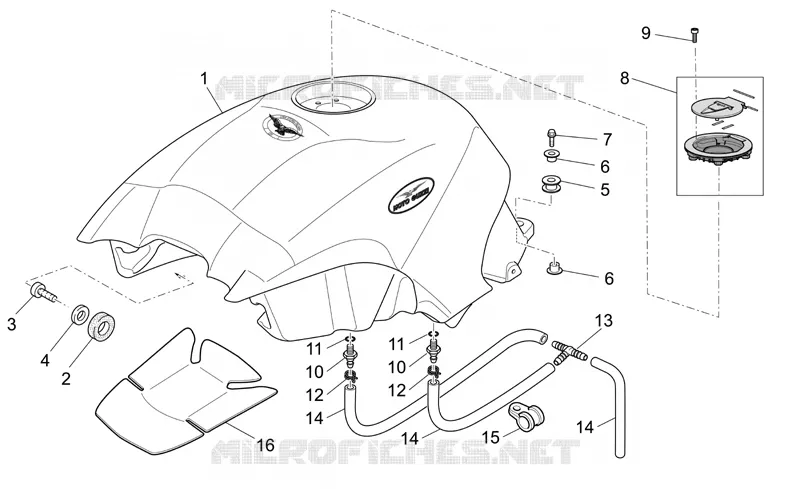

Fuel tank
6
Parts Diagram
Parts Catalog
Specific tools II
by
Front mud.-Pillar
Fuel tank
1
2
3
4
5
6
6
7
8
9
10
10
11
11
12
12
13
14
14
14
15
16
1
Fuel tank, grey
GU05100238
£1 536,02 Unit Price incl. VAT
1
Fuel tank, white
GU05100230BM
Not Available
1
Fuel tank, white
GU05100235BM
Not Available
1
Fuel tank, grey
GU05100233
£1 536,02 Unit Price incl. VAT
1
Fuel tank orange
977558
Not Available
1
Fuel tank orange
977557
Not Available
1
Fuel tank blank
GU05100230
£282,43 Unit Price incl. VAT
1
Fuel tank, black
GU05100232
£772,98 Unit Price incl. VAT
1
Fuel tank blank
GU05100235
£334,57 Unit Price incl. VAT
1
Fuel tank red
GU05100236
£507,64 Unit Price incl. VAT
1
Fuel tank red
GU05100231
£2 814,59 Unit Price incl. VAT
1
Fuel tank, black
GU05100237
Not Available
2
Rubber spacer *
AP8201124
£7,40 Unit Price incl. VAT
3
Hex socket screw
GU98682414
£2,27 Unit Price incl. VAT
4
Washer 8,4X15X1,5
GU95008208
£1,27 Unit Price incl. VAT
5
Rubber spacer
GU02107100
£13,93 Unit Price incl. VAT
6
Spacer *
AP8121804
£13,28 Unit Price incl. VAT
7
Screw w/ flange
AP8152291
£1,94 Unit Price incl. VAT
8
Tank cap
GU05103930
£257,51 Unit Price incl. VAT
9
Hex socket screw
GU98692216
£2,47 Unit Price incl. VAT
10
Joint
GU30103730
£11,33 Unit Price incl. VAT
11
O-ring 2018
AP8120965
£1,06 Unit Price incl. VAT
12
Hose clamp D10,1
AP8101595
£3,97 Unit Price incl. VAT
13
3-way union
AP8104666
£16,02 Unit Price incl. VAT
14
Fuel pipe 5,5x10
AP8120952
Not Available
15
Cable-guide
AP8104451
£14,81 Unit Price incl. VAT
16
Fuel tank central insulation
GU05102930
£19,13 Unit Price incl. VAT
