Front wheel I for Bellagio from 2010

Free shipping for all orders to United Kingdom over £150! See conditions.

Front wheel I

1

Front wheel 3,50x18"

884081

Not Available

1

Front wheel 3,50x18"

978308

£449,95 Unit Price incl. VAT

2

Front wheel 3,50x18"

978305

£834,10 Unit Price incl. VAT

3

Ball bearing 25x47x12

AP8125777

£10,52 Unit Price incl. VAT

4

Gasket ring

GU90402549

Not Available

5

Spacer

978516

£42,07 Unit Price incl. VAT

6

Spoke

887081

£7,38 Unit Price incl. VAT

6

Spoke

978306

£7,94 Unit Price incl. VAT

7

Nipples

978307

Not Available

8

Front brake disc 320

883688

£303,14 Unit Price incl. VAT

8

Front brake disc

977024

£368,45 Unit Price incl. VAT

9

Screw w/ flange M8x20

AP8152286

£2,63 Unit Price incl. VAT

10

Front wheel spindle

GU03614101

Not Available

11

Cover 15 mm

GU93180111

£2,63 Unit Price incl. VAT

12

RH spacer

978303

£21,61 Unit Price incl. VAT

13

LH spacer

978304

£30,44 Unit Price incl. VAT

14

Tyre

0000000

Not Available

15

Tyre

0000000

Not Available

16

Tyre

0000000

Not Available

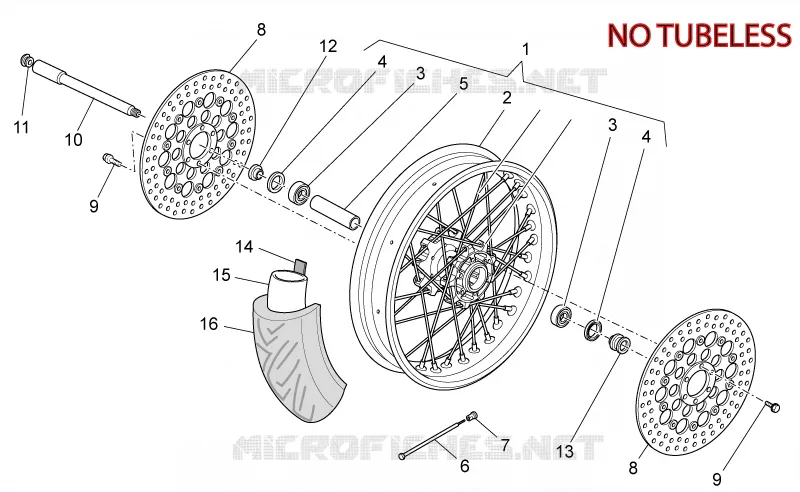

Find the detailed :label MOTO GUZZI LAVERDA SCARABEO diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original MOTO GUZZI LAVERDA SCARABEO part number.

The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
