Rear wheel II for Bellagio from 2007

Free shipping for all orders to United Kingdom over £150! See conditions.

Rear wheel II

1

Rear wheel 5,5X17"

978818

Not Available

1

Rear wheel, spokes

884082

£1 052,54 Unit Price incl. VAT

2

Tyre

0000000

Not Available

3

Conical bush

GU05632730

£8,03 Unit Price incl. VAT

4

Screw w/ flange M12x65

GU97202665

£18,66 Unit Price incl. VAT

5

Dust cover ring

977056

£11,42 Unit Price incl. VAT

6

Rear brake disc

GU05635730

£92,17 Unit Price incl. VAT

7

screw

GU30611460

£4,01 Unit Price incl. VAT

8

Short spoke L=147,4mm

887082

£7,38 Unit Price incl. VAT

8

Short spoke

978815

£10,01 Unit Price incl. VAT

9

Long spoke

978816

£7,03 Unit Price incl. VAT

9

Long spoke L=154,9mm

887083

£7,38 Unit Price incl. VAT

10

Nipples L=34

978810

£13,21 Unit Price incl. VAT

11

Snap ring

978811

£2,47 Unit Price incl. VAT

12

O-ring OR2025

GU90706061

£2,47 Unit Price incl. VAT

13

Counterweight

GU14616150

£18,94 Unit Price incl. VAT

14

Tubeless tyre valve

978814

£23,30 Unit Price incl. VAT

14

Tubeless tyre valve

AP8101744

£14,65 Unit Price incl. VAT

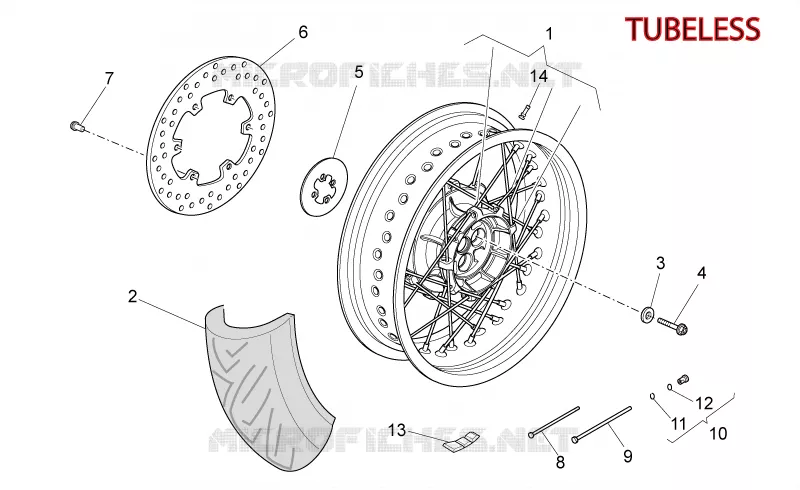

Find the detailed :label MOTO GUZZI LAVERDA SCARABEO diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original MOTO GUZZI LAVERDA SCARABEO part number.

The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
