1
Engine displacement
1400
2
Model
AUDACE
3
Year
2016
4
Trim
Audace
5
Parts Catalog
Front wheel
6
Parts Diagram
Parts Catalog
Front electrical system
by
Rear lights

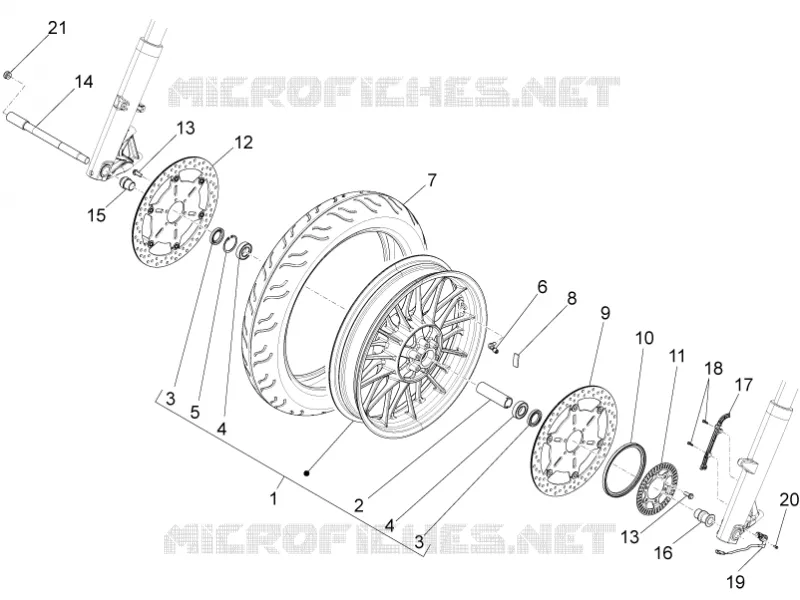

Front wheel
1
2
3
3
4
4
5
6
7
8
9
10
11
12
13
13
14
15
16
17
18
19
20
21
1
Front wheel rim with bearings
2B000057
£814,57 Unit Price incl. VAT
2
Front wheel ins.spacer
887429
£32,56 Unit Price incl. VAT
3
Gasket ring 30x47x7
AP8125841
£1,96 Unit Price incl. VAT
4
Bearing 25x47x12
AP8110094
£6,56 Unit Price incl. VAT
5
Snap ring d47
AP8125842
£0,66 Unit Price incl. VAT
6
Tubeless tyre valve
GU03617710
£27,68 Unit Price incl. VAT
7
Front tyre 130/70
887433
£552,47 Unit Price incl. VAT
8
Counterweight
GU14616150
£18,94 Unit Price incl. VAT
9
Front brake disk SX
887430
£165,76 Unit Price incl. VAT
10
Tone wheel protection
B063440
£10,25 Unit Price incl. VAT
11
Phonic wheel
887875
Not Available
12
RH front brake disc
887439
£165,76 Unit Price incl. VAT
13
Flanged TE screw M8x22
887762
Not Available
14
Front wheel spindle
887566
£105,05 Unit Price incl. VAT
15
Right front wheel spacer
887578
£31,67 Unit Price incl. VAT
16
Front LH wheel spacer
887579
£34,09 Unit Price incl. VAT
17
Front ABS sensor cable guide
B044314
£6,77 Unit Price incl. VAT
18
Hex socket screw M4x10
AP8152043
£1,88 Unit Price incl. VAT
19
Sensor ABS
859792
Not Available
20
Screw w/ flange M5x15
AP8152273
£1,88 Unit Price incl. VAT
21
Cover 15 mm
GU93180111
£2,63 Unit Price incl. VAT

Find the detailed :label MOTO GUZZI LAVERDA SCARABEO diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original MOTO GUZZI LAVERDA SCARABEO part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
