1
Engine displacement
850
2
Model
850-T5
3
Year
1987
4
Trim
T5 Polizia VecchioTipo
5
Parts Catalog
Body
6
Parts Diagram
Parts Catalog
Fairing 850T5 Carab.1989
by
Body 850T5 Carab.1989
Body
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
15
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
31
31
32
33
33
34
34
36
37
38
39
40
41
42
44
45
46
49
50
51
52
53
54
55
56
57
58
59
1
Fuel tank
GU28100245
Not Available
1
Fuel tank
GU281002451
Not Available
2
Tank cap
GU28103946
£62,90 Unit Price incl. VAT
3
RH fuel cock
GU23105470
Not Available
4
"Moto Guzzi" dataplate
GU28917300
Not Available
5
Gasket
GU00823931070
£5,44 Unit Price incl. VAT
6
RH fuel cock
GU17105460
£14,34 Unit Price incl. VAT
7
LH fuel cock
GU17105461
£14,60 Unit Price incl. VAT
8
Fixing snap
GU14102600
£16,15 Unit Price incl. VAT
9
Saddle
GU28460580
Not Available
10
Pin
GU27471920
Not Available
11
RH side cover
GU284762001
Not Available
11
RH accumulator cover, sky blue
GU28476249
Not Available
12
LH side cover blank
GU284763001
Not Available
12
LH accumulator cover, sky blue
GU28476345
Not Available
13
Name plate 850 T5
GU28922000
Not Available
14
Plate
GU39922200
£1,02 Unit Price incl. VAT
15
Rubber spacer
GU91551082
Not Available
17
Pillion grab bar
GU28464301
Not Available
18
Washer
GU28478645
£0,92 Unit Price incl. VAT
19
Spacer
GU28471845
Not Available
20
Pin
GU28471945
Not Available
21
Fixing pin
GU28466845
Not Available
22
Washer 10,5X18X0,8
GU95129180
£1,02 Unit Price incl. VAT
23
Rubber spacer
GU28479945
£7,80 Unit Price incl. VAT
24
"MotoGuzzi" dec.
GU28923400
Not Available
25
LH gasket
GU28439846
£1,82 Unit Price incl. VAT
26
RH gasket
GU28439845
£2,03 Unit Price incl. VAT
27
Rear fairing, blank
GU284726451
Not Available
27
Rear fairing, sky blue
GU28472645
Not Available
28
Rear mudguard
GU28437010
Not Available
29
Splash guard
GU14438750
£36,86 Unit Price incl. VAT
30
Hex screw
GU98054320
£0,96 Unit Price incl. VAT
31
Washer 6,4x12x1,2
GU95100141
£1,02 Unit Price incl. VAT
32
U-bolt
GU93301313
£74,62 Unit Price incl. VAT
33
Rubber spacer
GU93110060
£1,09 Unit Price incl. VAT
34
Nut M6x1
GU92630106
£5,03 Unit Price incl. VAT
36
Front mudguard
GU284344451
Not Available
37
Splash guard
GU28436945
Not Available
38
Plate
GU19436600
Not Available
39
Spring washer 8x15x0,3
GU61270300
£1,70 Unit Price incl. VAT
40
Nut
GU92630508
£1,67 Unit Price incl. VAT
41
Eyelet
GU28659740
£12,58 Unit Price incl. VAT
42
Decal set
GU28923345
Not Available
44
Tab
GU28460945
Not Available
45
Rear saddle hinge
GU28461345
Not Available
46
Front saddle hinge
GU28461300
Not Available
49
Fixing pin
GU28472545
Not Available
50
screw
GU98280610
Not Available
51
Washer
GU95000206
£1,02 Unit Price incl. VAT
52
Rear reflector
GU28745800
Not Available
53
Washer
GU95129080
£0,34 Unit Price incl. VAT
54
Nut
GU92602204
Not Available
55
Hex screw
GU98054316
£0,49 Unit Price incl. VAT
56
Washer 6,5X17X1.5
GU95100139
£1,20 Unit Price incl. VAT
57
Notched washer
GU95021106
Not Available
58
LH fuel cock
GU23105370
£35,96 Unit Price incl. VAT
59
Cover
GU28105280
Not Available

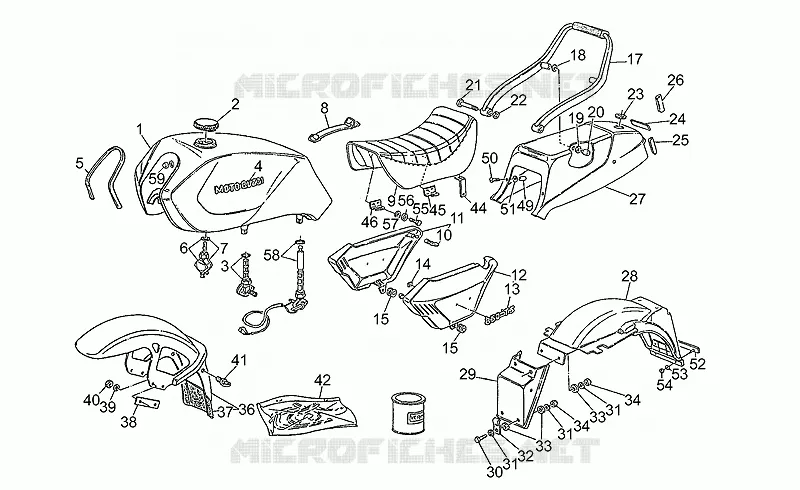

Find the detailed Body MOTO GUZZI LAVERDA SCARABEO diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original MOTO GUZZI LAVERDA SCARABEO part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
