1
Engine displacement
850
2
Model
850-T5
3
Year
1988
4
Trim
T5 Polizia VecchioTipo
5
Parts Catalog
Driven shaft
6
Parts Diagram
Parts Catalog
Drive shaft
by
Gear box
Driven shaft
1
2
3
4
5
6
7
8
9
10
11
12
12
12
13
14
15
16
17
18
19
20
21
22
22
23
24
25
26
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
50
50
51
52
1
Driven shaft
GU14213612
£590,24 Unit Price incl. VAT
2
Nut
GU14217410
£23,46 Unit Price incl. VAT
3
Shim 17,25x27x0,5
GU43083810
£1,58 Unit Price incl. VAT
4
Clearance washer 17,1x30
GU14215400
£3,13 Unit Price incl. VAT
5
Gear 4a Z=20
GU14215110
Not Available
6
Ring 4a
GU92259017
£21,49 Unit Price incl. VAT
7
Roller cage 4a A.S.
GU92251022
£21,86 Unit Price incl. VAT
8
Sliding sleeve 3a-4a
GU14231012
£113,81 Unit Price incl. VAT
9
Hose
GU14232512
£38,08 Unit Price incl. VAT
10
Washer 25x40x3
GU14218011
£7,98 Unit Price incl. VAT
11
Gear 3a Z=22
GU14214810
Not Available
12
Bush 1a-2a-3a AS
GU14213001
£56,30 Unit Price incl. VAT
13
Gear 2a Z=25
GU14214510
Not Available
14
Nut
GU14219310
Not Available
15
Ball
GU92295702
£0,67 Unit Price incl. VAT
16
Washer 22,1x32x2
GU14217300
£2,96 Unit Price incl. VAT
17
Gear 5a AS Z=21
GU14215213
£175,62 Unit Price incl. VAT
18
Gear 1a Z=28
GU14214210
Not Available
19
Sliding sleeve 1a-2a
GU14230711
£136,27 Unit Price incl. VAT
20
Shift cam
GU14234405
£78,46 Unit Price incl. VAT
21
Washer 8,2x28x1
GU14235500
£1,46 Unit Price incl. VAT
22
Shim 1,2 mm
GU55235003
£0,71 Unit Price incl. VAT
22
Shim 1 mm
GU55235002
£1,13 Unit Price incl. VAT
22
Shim 0,6 mm
GU55235000
£1,14 Unit Price incl. VAT
22
Shim 0,8 mm
GU55235001
£0,95 Unit Price incl. VAT
23
Rod
GU14234300
£26,35 Unit Price incl. VAT
24
Pin
GU14234600
£12,38 Unit Price incl. VAT
25
Rod
GU14232400
£62,58 Unit Price incl. VAT
26
Fork 1a-2a-3a-4a
GU14230501
£249,72 Unit Price incl. VAT
27
Fork
GU14231201
£221,92 Unit Price incl. VAT
28
Preselection complete
GU28236260
£91,67 Unit Price incl. VAT
29
Spring
GU28238261
Not Available
30
screw
GU98052325
£0,56 Unit Price incl. VAT
31
Notched washer
GU95021106
Not Available
32
Lever
GU18258201
Not Available
33
Split pin
GU95500222
£1,26 Unit Price incl. VAT
34
Nut M6x1
GU92630106
£5,03 Unit Price incl. VAT
35
Washer
GU95129110
Not Available
36
Pin
GU95770265
Not Available
37
Fork
GU12626800
£74,86 Unit Price incl. VAT
38
Nut
GU92602206
£1,68 Unit Price incl. VAT
39
Change gear tie rod compl.
GU28257845
Not Available
40
Rubber spacer
GU14251001
£3,65 Unit Price incl. VAT
41
Gear lever
GU30250810
Not Available
42
Bushing
GU28252010
Not Available
43
Nut
GU92701120
£2,00 Unit Price incl. VAT
44
Washer
GU95100409
Not Available
45
screw
GU30252360
£68,50 Unit Price incl. VAT
46
O-ring 21,95x1,78
GU90706219
£1,76 Unit Price incl. VAT
47
Fork
GU28258160
Not Available
48
Spring washer
GU60013800
Not Available
49
O-ring
GU90706108
£1,16 Unit Price incl. VAT
50
Roller cage 30x35x13
GU92251030
£21,80 Unit Price incl. VAT
51
O-ring 20,24X2,62
GU90706203
£1,39 Unit Price incl. VAT
52
Safety plate
GU95184014
£4,78 Unit Price incl. VAT

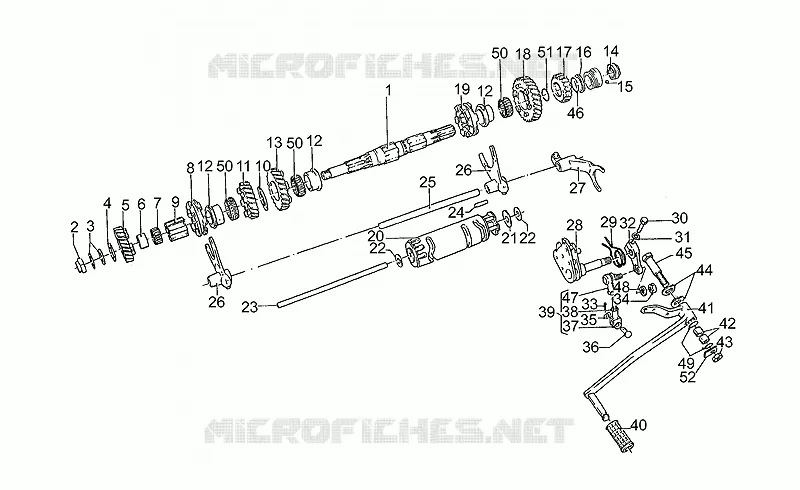

Find the detailed Driven shaft MOTO GUZZI LAVERDA SCARABEO diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original MOTO GUZZI LAVERDA SCARABEO part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
