Cylinder head for MOTO GUZZI LAVERDA SCARABEO T5 Polizia/CC/PA/NC from 2000

Free shipping for all orders to United Kingdom over £150! See conditions.

Valve cover, grey

GU37023505

Not Available

Valve cover, blank

GU14023560

Not Available

Washer 15,2x26x0,5

GU10032700

£1,25 Unit Price incl. VAT

Cover gasket

GU14023760

£9,22 Unit Price incl. VAT

Hex socket screw

GU98622325

£1,02 Unit Price incl. VAT

RH cylinder head, blank

GU28022145

Not Available

RH cylinder head, grey

GU28022146

£158,06 Unit Price incl. VAT

RH cylinder head, grey

GU28022147

Not Available

LH cylinder head, blank

GU28022245

Not Available

LH cylinder head, grey

GU28022246

£153,44 Unit Price incl. VAT

LH cylinder head, grey

GU28022247

Not Available

Exhaust valve guide

GU13036801

£59,48 Unit Price incl. VAT

Snap ring

GU90353016

£1,02 Unit Price incl. VAT

Gasket

GU28022000

£29,46 Unit Price incl. VAT

RH cylinder assy., blank

GU28060245

£1 384,12 Unit Price incl. VAT

Cylinder assy., grey

GU28060148

Not Available

Gasket

GU14020865

£5,98 Unit Price incl. VAT

O-ring 9x2

GU90706094

£1,87 Unit Price incl. VAT

Oil plug

GU12022600

£36,13 Unit Price incl. VAT

O-ring 20,24X2,62

GU90706203

£1,39 Unit Price incl. VAT

Column nut

GU13021900

£15,36 Unit Price incl. VAT

Washer 10,5X18X0,8

GU95129180

£1,02 Unit Price incl. VAT

Stud bolt

GU12021800

£35,70 Unit Price incl. VAT

Stud bolt

GU12021700

Not Available

Washer 10,5X21X1

GU14018400

£1,26 Unit Price incl. VAT

Nut M10X1,5

GU92603010

£1,54 Unit Price incl. VAT

Intake valve

GU29036050

£121,36 Unit Price incl. VAT

Exhaust valve

GU29036150

£147,19 Unit Price incl. VAT

Washer 14,2x31x1

GU13037200

£2,75 Unit Price incl. VAT

Washer 14,2x31x0,3

GU14037300

£2,26 Unit Price incl. VAT

Lower cup

GU13037000

£11,89 Unit Price incl. VAT

Outer spring

GU13037400

£15,92 Unit Price incl. VAT

Inner spring

GU13037600

£17,58 Unit Price incl. VAT

Upper cup

GU14038000

£28,34 Unit Price incl. VAT

Valve half-cone

GU12038100

£12,37 Unit Price incl. VAT

RH rocker arm assy

GU14030200

Not Available

LH rocker arm assy

GU14030400

Not Available

Bushing 15x18x43

GU91111511

£53,51 Unit Price incl. VAT

Adjuster screw

GU17034050

£15,18 Unit Price incl. VAT

Nut

GU10034100

£13,40 Unit Price incl. VAT

Spring

GU94322215

£10,33 Unit Price incl. VAT

Washer 15,2x26x1

GU90118152

£12,17 Unit Price incl. VAT

Rocker shaft

GU12031800

Not Available

Hex screw

GU98054316

£0,49 Unit Price incl. VAT

Washer 6,5x11x2

GU95120065

£1,02 Unit Price incl. VAT

Rocker arm support

GU14034865

£54,23 Unit Price incl. VAT

Stud bolt

GU96508042

Not Available

LH cylinder assy., blank

GU28060145

Not Available

Cylinder assy., grey

GU28060148

Not Available

Washer 6,15x11x0,8

GU95004206

Not Available

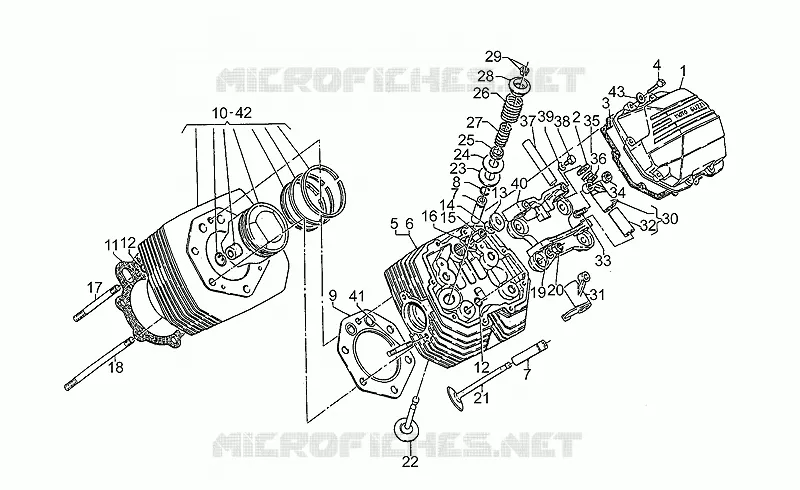

Find the detailed Cylinder head MOTO GUZZI LAVERDA SCARABEO diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original MOTO GUZZI LAVERDA SCARABEO part number.

The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.

Other Parts for T5 Polizia/CC/PA/NC

MOTO GUZZI LAVERDA SCARABEO T5 Polizia/CC/PA/NC 2000

T5 Polizia/CC/PA/NC

Model : 850-T5

Engine capacity : 850

Year : 2000
