Engine displacement
50
2
Model
SCARABEO
3
Year
2005
4
Trim
Scarabeo 4T 2V E2
5
Parts Catalog
Carburettor II
6
Parts Diagram
Parts Catalog
Head cover
by
Lock hardware kit
Carburettor II
1
2
3
4
5
6
7
8
9
10
11
12
13
1
Starter
AP8551063
Not Available
1
Starter
AP8570135
Not Available
2
Plate
AP8134752
Not Available
3
Starter cover
AP8551065
Not Available
4
Conical pin
AP8570045
Not Available
4
Conical pin
AP8570136
Not Available
5
Conical pin clip
AP8570046
Not Available
6
Adjuster screw
CM151701
Not Available
7
plate
AP8551147
Not Available
8
Diaphragm
AP8570044
Not Available
9
Cover
AP8551148
Not Available
10
Spring
AP8570047
Not Available
11
Spring
AP8570052
Not Available
12
Adjuster screw
AP8570061
Not Available
13
Spring
AP8570062
Not Available

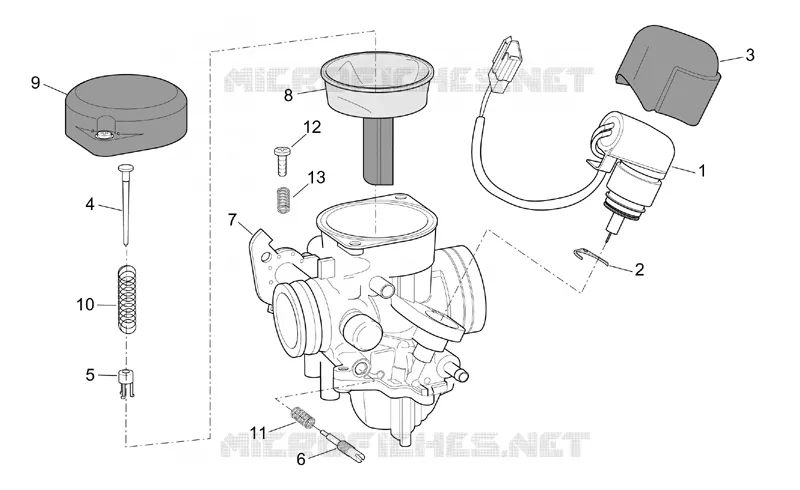

Find the detailed Carburettor II MOTO GUZZI LAVERDA SCARABEO diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original MOTO GUZZI LAVERDA SCARABEO part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
