Engine displacement
50
2
Model
SCARABEO
3
Year
2002
4
Trim
Scarabeo 4T 2V E2
5
Parts Catalog
Central body I
6
Parts Diagram
Parts Catalog
Handlebar - Dashboard
by
Cylinder - Piston
Central body I
1
2
3
4
5
5
6
7
8
1
Type appr.data cover, grey
AP8149605
Not Available
2
Glove comp.door, white
AP8258403
Not Available
2
Glove comp.door, blue
AP8258894
Not Available
2
Glove comp.door, silver
AP8268117
Not Available
2
Glove comp.door, red
AP8258761
Not Available
2
Glove comp.door, white
AP8268129
Not Available
2
Glove comp.door, grey
AP8268105
Not Available
2
Glove comp.door, grey
AP8258710
Not Available
2
Glove comp.door, black
AP8268141
Not Available
2
Glove comp.door, blue
AP8258771
Not Available
3
Grille interne porte-objets
AP8148736
£32,46 Unit Price incl. VAT
4
JOINT COFFRE NOIR 7X8
AP8220407
£2,76 Unit Price incl. VAT
5
Vis
AP8152334
£1,88 Unit Price incl. VAT
6
Serrure porte-objets
AP8104600
£88,28 Unit Price incl. VAT
7
Rondelle évent.
AP8221312
£1,88 Unit Price incl. VAT
8
Ecrou bas
AP8152194
£2,42 Unit Price incl. VAT

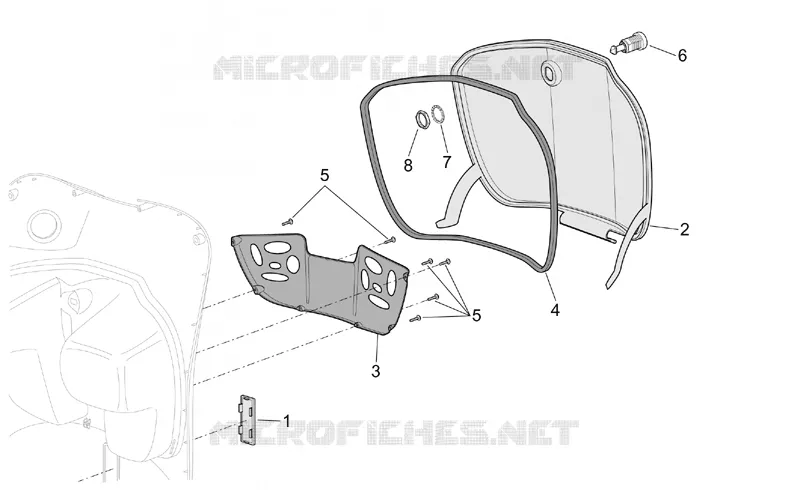

Find the detailed Central body I MOTO GUZZI LAVERDA SCARABEO diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original MOTO GUZZI LAVERDA SCARABEO part number.
