1
Engine displacement
50
2
Model
SCARABEO
3
Year
2005
4
Trim
Scarabeo 4T 2V E2
5
Parts Catalog
Front body III
6
Parts Diagram
Parts Catalog
Controls
by
Crank-case
Front body III
1
2
3
4
5
6
6
6
6
7
7
8
8
9
1
Up. front fairing, silver
AP8268111
Not Available
1
Front shield, white
AP8268123
Not Available
1
Front shield, blue
AP8268175
Not Available
1
Front shield, grey
AP8268098
Not Available
1
Front shield, blue
AP8258765
Not Available
1
Front shield, grey
AP8258713
Not Available
1
Front shield, white
AP8268177
Not Available
1
Front shield, black
AP8268135
Not Available
1
Front shield, red
AP8258755
Not Available
2
Internal shield, blue
AP8258893
Not Available
2
Internal shield, V.white
AP8258402
Not Available
2
Internal shield, blue
AP8258770
Not Available
2
Internal shield, grey
AP8268104
Not Available
2
Internal shield, grey
AP8258709
Not Available
2
Internal shield, red
AP8258760
Not Available
2
Internal shield, black
AP8268140
Not Available
2
Internal shield, white
AP8268128
Not Available
2
Internal shield, silver
AP8268116
Not Available
3
RH bumper, black
AP8258735
Not Available
4
Pare-chocs gche, noir;
AP8258736
£12,05 Unit Price incl. VAT
5
Screw w/ flange M5x12
AP8152302
Not Available
6
Vis taraud pour plast. Inox
AP8150413
£1,61 Unit Price incl. VAT
7
Rondelle pour arbres
AP8150450
£2,20 Unit Price incl. VAT
8
Joint;
AP8102504
£2,52 Unit Price incl. VAT
9
Screw clip D4,2
AP8102782
Not Available

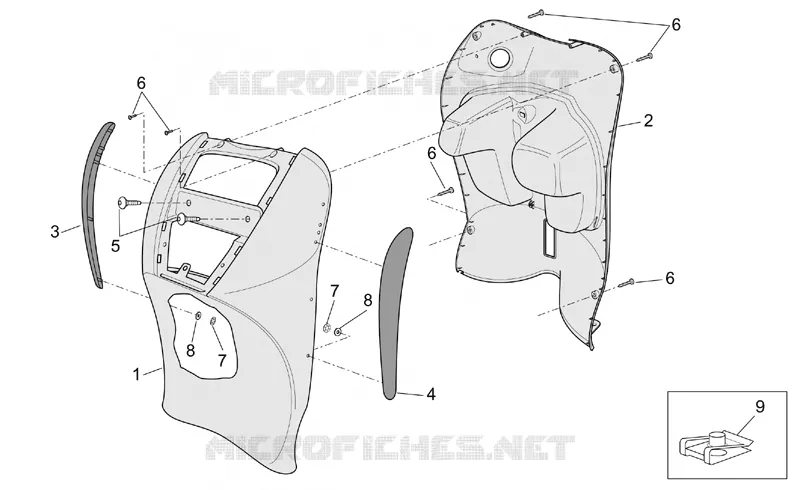

Find the detailed Front body III MOTO GUZZI LAVERDA SCARABEO diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original MOTO GUZZI LAVERDA SCARABEO part number.
