Engine displacement
50
2
Model
SCARABEO
3
Year
2005
4
Trim
Scarabeo 2T E2 (engine Piaggio)
5
Parts Catalog
Front fork II
6
Parts Diagram
Parts Catalog
Front fork I
by
R.shock absorber-connect. Rod
Front fork II
1
2
3
4
5
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
20
1
Front fork
AP8203933
Not Available
2
Nut M8
AP8223092
£5,74 Unit Price incl. VAT
2
Nut M8
AP8203892
Not Available
3
RH sleeve
AP8203895
Not Available
3
RH sleeve
AP8223104
Not Available
3
RH sleeve
AP8203636
Not Available
4
LH sleeve
AP8223106
Not Available
4
LH sleeve
AP8203896
Not Available
4
LH sleeve
AP8203637
Not Available
5
Gasket ring
AP8223082
£21,98 Unit Price incl. VAT
5
Gasket ring
AP8203894
Not Available
5
Gasket ring
AP8203744
Not Available
6
Stroke limit stop
AP8203891
£12,77 Unit Price incl. VAT
6
Stroke limit stop
AP8223093
£15,97 Unit Price incl. VAT
7
screw
AP8203897
Not Available
7
screw
AP8203639
Not Available
7
screw
AP8223088
Not Available
8
Nut
AP8223105
Not Available
8
Nut
AP8203899
Not Available
8
Nut
AP8203638
Not Available
9
Screw w/ flange M8x25
AP8223087
£1,16 Unit Price incl. VAT
9
Screw w/ flange M8x25
AP8203717
Not Available
9
Screw w/ flange M8x25
AP8203898
Not Available
10
Cap nut
AP8203900
Not Available
10
Cap nut
AP8223090
Not Available
10
Cap nut
AP8203689
Not Available
11
Rubber spacer
AP8223095
£5,65 Unit Price incl. VAT
11
Rubber bumper
AP8203890
Not Available
12
Plunger, complete
AP8223094
£254,95 Unit Price incl. VAT
12
Plunger, complete
AP8203716
Not Available
12
Plunger, complete
AP8203888
Not Available
13
Washer
AP8223091
£8,92 Unit Price incl. VAT
13
Washer
AP8203901
Not Available
14
Spring
AP8223080
Not Available
15
Bush
AP8223084
Not Available
16
Return spring
AP8223085
Not Available
17
Washer
AP8223086
Not Available
18
Gasket nylon
AP8223097
£2,29 Unit Price incl. VAT
19
Washer
AP8223096
£9,02 Unit Price incl. VAT
20
Dust cover
666051
£11,18 Unit Price incl. VAT

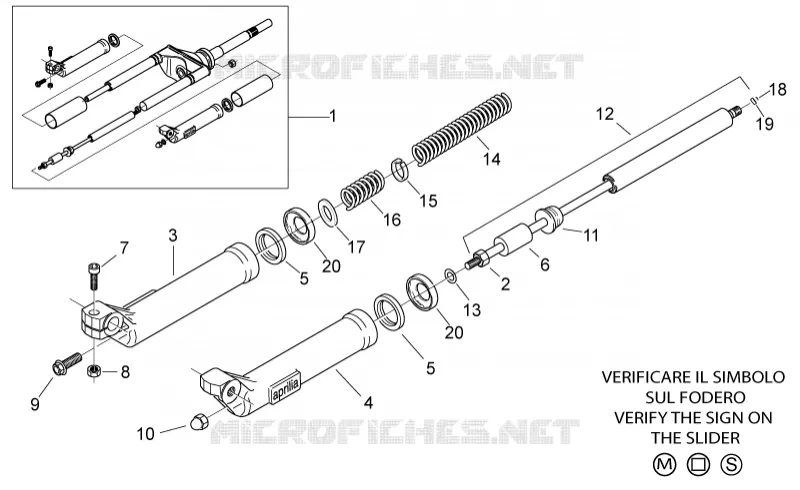

Find the detailed :label MOTO GUZZI LAVERDA SCARABEO diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original MOTO GUZZI LAVERDA SCARABEO part number.
