1
Engine displacement
850
2
Model
V9
3
Year
2019
4
Trim
V9 Bobber Sport 850 Euro 4 ABS
5
Parts Catalog
EXHAUST
6
Parts Diagram
Parts Catalog
REAR WHEEL
by
THROTTLE BODY
EXHAUST
1
2
3
4
5
6
7
7
8
9
10
10
11
11
12
13
14
15
15
15
15
15
15
16
16
16
16
17
17
18
18
19
19
20
20
20
20
20
20
21
21
21
21
21
22
22
22
22
22
23
23
23
23
23
24
25
25
1
Silencieux D
2B0054285
£1 316,40 Unit Price incl. VAT
2
Silencieux G
2B0054295
£1 316,40 Unit Price incl. VAT
3
Silencer dx protection
2B0022935
£73,34 Unit Price incl. VAT
4
Protection silenc.gche
2B0045945
£94,12 Unit Price incl. VAT
5
Collecteur d'échappement D.
2B004548
£329,26 Unit Price incl. VAT
6
Collecteur d'échappement G.
2B004549
£353,81 Unit Price incl. VAT
7
Lamda sensor l.660 mm
896110
£143,81 Unit Price incl. VAT
8
D.37 clamp
B063292
£37,60 Unit Price incl. VAT
9
Hose clamp
874957
£27,76 Unit Price incl. VAT
10
Bushing
GU91113826
£37,93 Unit Price incl. VAT
11
Exhaust pipe gasket
852090
Not Available
12
Right silencer support bracket with i.p.
2B002533
£109,50 Unit Price incl. VAT
13
Left silencer support bracket with i.p.
2B002532
£109,50 Unit Price incl. VAT
14
Rubber spacer
AP8120455
£10,54 Unit Price incl. VAT
15
Hex socket screw M6x10
2B002187
£0,61 Unit Price incl. VAT
16
Spacer
876879
£10,63 Unit Price incl. VAT
17
Flanged nut M8
GU92660021
£1,60 Unit Price incl. VAT
18
Washer 8,4X13X0,8
GU14615901
£2,48 Unit Price incl. VAT
19
Spring plate M6
254485
£1,64 Unit Price incl. VAT
20
Conical washer
834951
£1,16 Unit Price incl. VAT
21
Hex socket screw M8x12
AP8152055
£13,28 Unit Price incl. VAT
22
Washer 8,4X13X0,8
GU14615901
£2,48 Unit Price incl. VAT
23
Washer 8,4X15X1,5
GU95008208
£1,27 Unit Price incl. VAT
24
Hose clamp
2B001935
£24,92 Unit Price incl. VAT
25
Heat protection
2B003284
£11,11 Unit Price incl. VAT

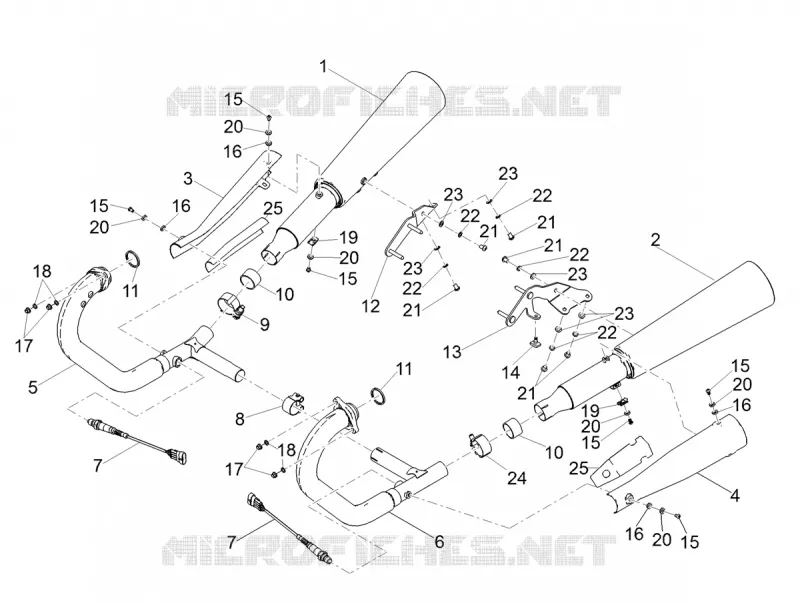

Find the detailed :label MOTO GUZZI LAVERDA SCARABEO diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original MOTO GUZZI LAVERDA SCARABEO part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
