Parts Catalog
CRANKSHAFT
6
Parts Diagram
Parts Catalog
SECONDARY AIR
by
CLUTCH
CRANKSHAFT
1
1
1
1
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
3
3
3
3
3
3
3
3
3
3
3
3
4
4
4
4
5
5
6
6
6
6
6
6
6
6
6
6
6
6
6
6
6
6
7
7
7
7
8
8
8
8
8
8
8
8
8
8
8
8
9
9
1
screw
GU19062261
£42,49 Unit Price incl. VAT
2
Connecting rod half-bearing, yellow
1A0068960G
Not Available
2
Connecting rod half-bearing, red
1A0068960R
Not Available
2
Connecting rod half-bearing, blue
1A0068960B
Not Available
3
Front main half-bearing, green
1A0066680V
Not Available
3
Front main half-bearing, black
1A0066680N
Not Available
3
Front main half-bearing, yellow
1A0066680G
Not Available
4
Bushing
GU27061885
£8,65 Unit Price incl. VAT
5
Half-clamp
GU27066460
£43,74 Unit Price incl. VAT
6
Connecting rod, selection class "A"
1A005325AA
Not Available
6
Connecting rod, selection class "B"
1A005325BB
Not Available
7
Crankshaft cpl.,cat.1
1A006671AA
Not Available
7
Crankshaft, assy. class 2
1A006671BB
Not Available
8
Rear main half-bearing, black
1A0066690N
Not Available
8
Rear main half-bearing, green
1A0066690V
Not Available
8
Rear main half-bearing, yellow
1A0066690G
Not Available
9
Cover
GU19065400
£13,62 Unit Price incl. VAT

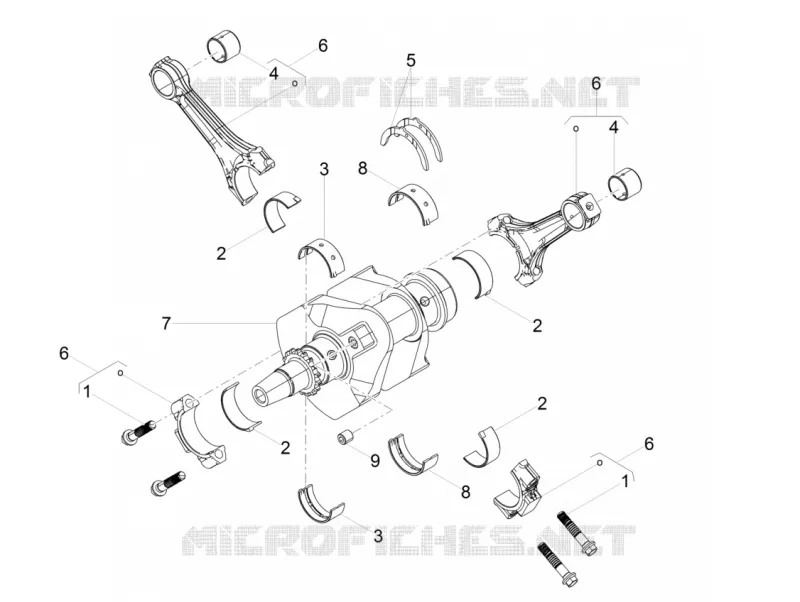

Find the detailed :label MOTO GUZZI LAVERDA SCARABEO diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original MOTO GUZZI LAVERDA SCARABEO part number.
