Engine displacement
850
2
Model
V9
3
Year
2019
4
Trim
V9 Bobber 850 Euro 4 ABS
5

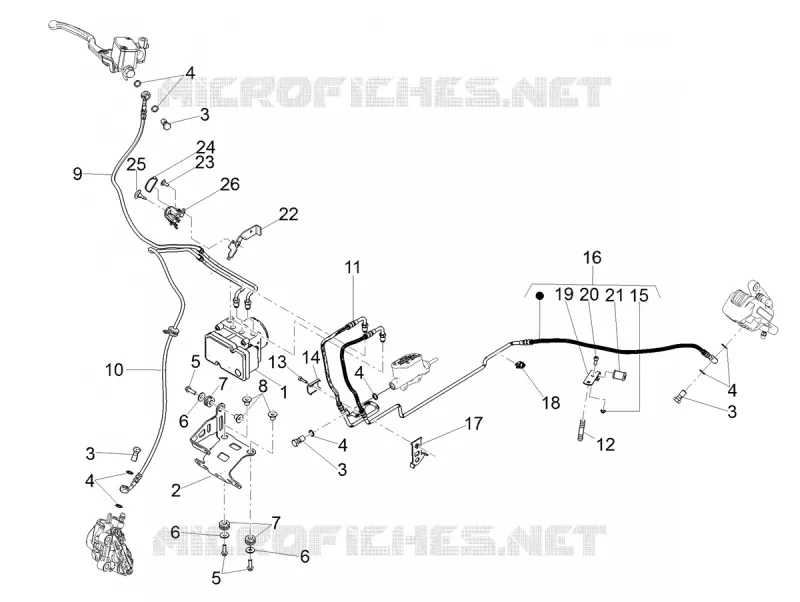

Parts Catalog
ABS BRAKE SYSTEM
6
Parts Diagram
Parts Catalog
IGNITION UNIT - FLYWHEEL
by
Protection
ABS BRAKE SYSTEM
1
2
3
3
3
3
4
4
4
4
4
5
5
6
6
6
7
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
1
ABS control unit
2D000102
£1 032,40 Unit Price incl. VAT
2
Control unit sup. bracket
2B003056
£67,63 Unit Price incl. VAT
3
Oil pipe screw
AP8113003
£2,08 Unit Price incl. VAT
4
Washer 10x14x1,6*
AP8113004
£1,87 Unit Price incl. VAT
5
Vis TE M6x20 préimprégnée
2B004560
£0,96 Unit Price incl. VAT
6
Washer 6,6x18x1,6*
AP8150015
£1,88 Unit Price incl. VAT
7
Rubber spacer
AP8120030
£1,38 Unit Price incl. VAT
8
T bush
AP8221023
£1,64 Unit Price incl. VAT
9
ABS HECU pipe - Front pump
2B002991
£25,02 Unit Price incl. VAT
10
ABS HECU pipe - Front clamp
2B002805
£55,80 Unit Price incl. VAT
11
Tuyau ABS HECU - Maître-cylindre de frein arrière
2B004618
£81,88 Unit Price incl. VAT
12
Stud bolt
GU96451316
£5,54 Unit Price incl. VAT
13
Hex socket screw M4x16
959559
£1,27 Unit Price incl. VAT
14
Pipe fixing plate
2B001614
£25,37 Unit Price incl. VAT
15
Low self-locking nut
AP8150451
£1,66 Unit Price incl. VAT
16
Tuyau ABS HECU - Étrier arrière
2B004619
£119,63 Unit Price incl. VAT
17
Brake hose holder plate
2B001564
£7,02 Unit Price incl. VAT
18
Cable-guide
AP8121882
£6,35 Unit Price incl. VAT
19
Hose clamp
GU03658330
£13,55 Unit Price incl. VAT
20
Hex socket screw M5x12
895709
£1,27 Unit Price incl. VAT
21
Ring
GU03658201
£3,11 Unit Price incl. VAT
22
ABS pipe carrier
2B004457
£10,18 Unit Price incl. VAT
23
Hex socket screw M5x9
AP8150500
£2,18 Unit Price incl. VAT
24
Hose clamp 155x2
AP8102386
£0,18 Unit Price incl. VAT
25
Rubber spacer
AP8120001
£5,32 Unit Price incl. VAT
26
ABS pipe guard
2B004458
£5,10 Unit Price incl. VAT
