Parts Catalog
CRANKSHAFT
6
Parts Diagram
Parts Catalog
Frame/bodywork
by
GEAR CHANGE MECHANISM
CRANKSHAFT
1
1
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
3
3
4
4
4
4
4
4
4
4
4
4
4
4
5
5
5
5
5
6
7
7
7
7
7
7
8
8
8
8
8
8
9
10
1
Vis bielle
1A008014
Not Available
2
Bielle classe de poids E2
1A007917E2
Not Available
2
Bielle classe de poids E5
1A007917E5
Not Available
2
Bielle classe de poids E4
1A007917E4
Not Available
2
Bielle classe de poids E1
1A007917E1
Not Available
2
Bielle classe de poids E3
1A007917E3
Not Available
3
Rouleau
847906
£4,80 Unit Price incl. VAT
4
Demi Roulement
1A0068960G
Not Available
4
Demi Roulement
1A0068960R
Not Available
4
Demi Roulement
1A0068960B
Not Available
5
Vilebrequin classe de poids E1
1A017175E1
£711,50 Unit Price incl. VAT
5
Vilebrequin classe de poids E3
1A017175E3
£711,50 Unit Price incl. VAT
5
Vilebrequin classe de poids E2
1A017175E2
£711,50 Unit Price incl. VAT
5
Vilebrequin classe de poids E4
1A017175E4
£711,50 Unit Price incl. VAT
5
Vilebrequin classe de poids E5
1A017175E5
£711,50 Unit Price incl. VAT
6
Bouchon
1A014668
Not Available
7
Demi-roulement
1A0066680V
Not Available
7
Demi-roulement
1A0066680N
Not Available
7
Demi-roulement
1A0066680G
Not Available
8
Demi-roulement
1A0066690N
Not Available
8
Demi-roulement
1A0066690V
Not Available
8
Demi-roulement
1A0066690G
Not Available
9
Bague d'étanchéité
1A010753
Not Available
10
Demi-etau
GU27066460
£43,74 Unit Price incl. VAT

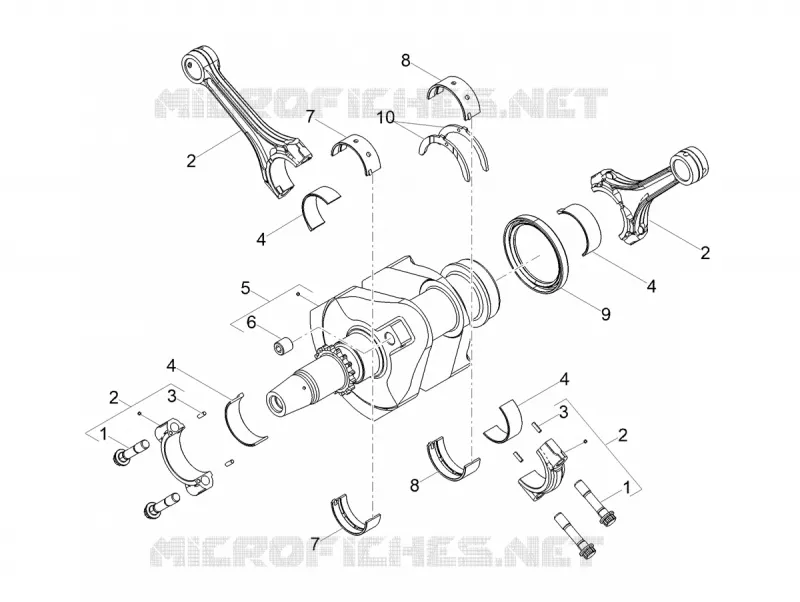

Find the detailed CRANKSHAFT MOTO GUZZI LAVERDA SCARABEO diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original MOTO GUZZI LAVERDA SCARABEO part number.
