Engine displacement
850
2
Model
V85
3
Year
2022
4
Trim
V85 TT 850 Euro 5 ABS
5
Parts Catalog
GEARBOX
6
Parts Diagram
Parts Catalog
CYLINDER HEAD - VALVES
by
OIL PUMP - OIL FILTER
GEARBOX
1
1
2
3
3
4
4
4
5
6
6
6
6
6
7
8
9
9
9
9
9
10
11
12
13
14
15
16
17
18
19
19
20
21
21
22
23
24
24
25
25
26
27
28
29
1
Ball bearing 20x52x15
GU92201822
£33,05 Unit Price incl. VAT
2
Washer
873928
£10,54 Unit Price incl. VAT
3
Screw
B013608
£1,98 Unit Price incl. VAT
4
Thrust washer
1A000566
Not Available
5
Arbre primaire
2A001002
£143,83 Unit Price incl. VAT
6
Moveable bush
849308
£31,02 Unit Price incl. VAT
7
Fifth speed gear
1A000360
Not Available
8
Clearance washer
849424
£3,05 Unit Price incl. VAT
9
Shaft snap ring
1A002604
Not Available
10
Sliding pinion 3a - 4a vel.
1A000436
Not Available
11
Thrust washer
B015040
£2,40 Unit Price incl. VAT
12
Moveable bush
974162
£34,78 Unit Price incl. VAT
13
6th pinion gear
1A000361
Not Available
14
Clearance washer
849396
£3,25 Unit Price incl. VAT
15
Snap ring
974165
£2,95 Unit Price incl. VAT
16
2nd pinion gear
1A000365
Not Available
17
Roulement 20x47x14
2A001011
£30,74 Unit Price incl. VAT
18
Pignon 1ère vitesse
2A000988
£79,39 Unit Price incl. VAT
19
Clearance washer
849309
£3,13 Unit Price incl. VAT
20
Engrenage 5eme vitesse
2A000989
£90,80 Unit Price incl. VAT
21
Clearance washer
849310
£6,13 Unit Price incl. VAT
22
Fourth speed gear Z=26
1A000368
Not Available
23
Third speed gear Z=28
1A000367
Not Available
24
Engrenage 6e
2A000947
£91,78 Unit Price incl. VAT
24
Gear 6a Z=24
1A000370
Not Available
25
Pignon de la 2e vitesse sur l'arbre secondaire
2A000948
£80,96 Unit Price incl. VAT
25
Second speed gear Z=32
1A000366
Not Available
26
Arbre secondaire boîte de vitesses
2A000998
£90,17 Unit Price incl. VAT
27
Rondelle évasée
2A001013
£8,71 Unit Price incl. VAT
28
Ball bearing 25x52x15
GU92201226
£50,18 Unit Price incl. VAT
29
Bague d'étanchéité 40x25x7
873931
£15,59 Unit Price incl. VAT

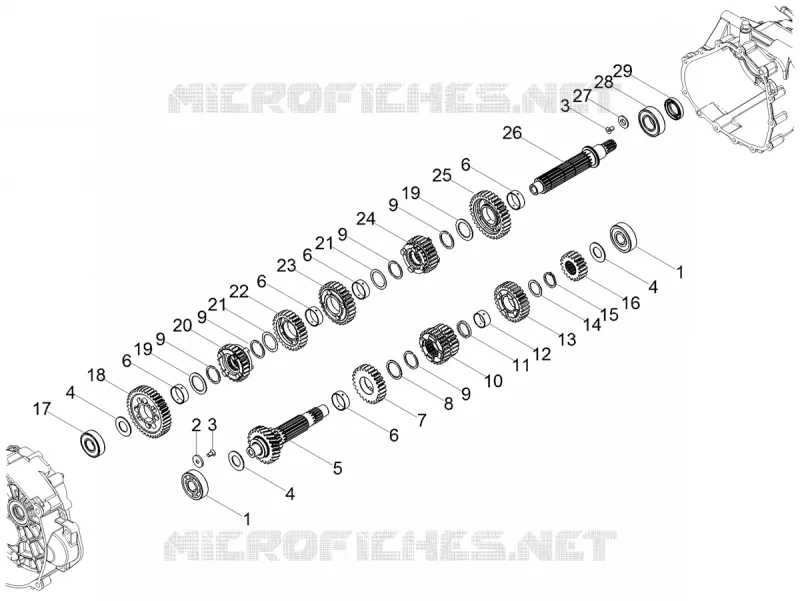

Find the detailed :label MOTO GUZZI LAVERDA SCARABEO diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original MOTO GUZZI LAVERDA SCARABEO part number.
