1
Engine displacement
750
2
Model
V7
3
Year
2020
4
Trim
V7 III Stone S 750 Euro 4 ABS
5
Parts Catalog

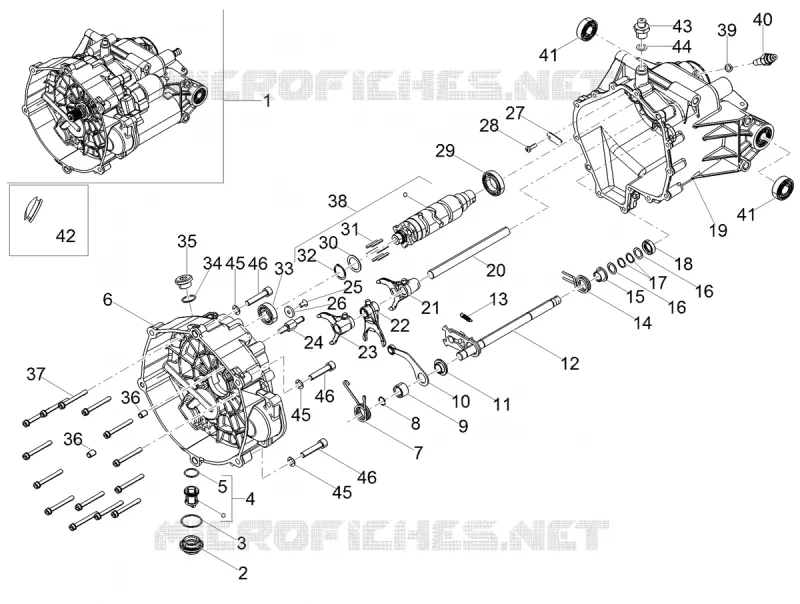

GEAR CHANGE MECHANISM
6
Parts Diagram
Parts Catalog
LOCKS
by
FRONT BRAKE CALIPER
GEAR CHANGE MECHANISM
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
36
37
38
39
40
41
41
42
43
44
45
45
45
46
46
46
1
Transmission, assy
2A0009125
£3 111,28 Unit Price incl. VAT
2
Oil filter plug
B015598
Not Available
3
O-ring 31,47x1,78
285536
£1,64 Unit Price incl. VAT
4
Oil filter cpl.
B018020
£2,02 Unit Price incl. VAT
5
O-ring 20.35x1.78
B017406
Not Available
6
Clutch drum
2A0009105
£380,18 Unit Price incl. VAT
7
Index spring
B064113
£3,97 Unit Price incl. VAT
8
Circlip
GU90353014
£7,98 Unit Price incl. VAT
9
Spacer
GU05234230
£9,40 Unit Price incl. VAT
10
Index assy. lever
B064112
£12,23 Unit Price incl. VAT
11
Bushing
GU05238431
£15,12 Unit Price incl. VAT
12
Preselecteur complet
2A000926
£69,78 Unit Price incl. VAT
13
Spring
GU05238231
£5,18 Unit Price incl. VAT
14
Spring
B063956
£33,08 Unit Price incl. VAT
15
Spacer
2A000467
£3,77 Unit Price incl. VAT
16
Fifth wheel
GU05239330
£1,93 Unit Price incl. VAT
17
Circlip
GU90271014
£0,89 Unit Price incl. VAT
18
Gasket ring 14x24x7
GU90401424
£34,70 Unit Price incl. VAT
19
Gear box
2A0009085
£567,62 Unit Price incl. VAT
20
Rod
2A000224
£15,89 Unit Price incl. VAT
21
Fork 2-3 speed
2A000226
£33,48 Unit Price incl. VAT
22
5-6 gear fork
2A000227
£37,45 Unit Price incl. VAT
23
Fork for secondary shaft
2A000225
£36,12 Unit Price incl. VAT
24
Set screw
2A000415
£12,83 Unit Price incl. VAT
25
Screw
B013608
£1,98 Unit Price incl. VAT
26
Washer
873905
£10,52 Unit Price incl. VAT
27
Lock plate
2A000306
£3,80 Unit Price incl. VAT
28
Screw M5x16
2A000241
£0,48 Unit Price incl. VAT
29
Ball bearing 25x42x9
857250
£11,84 Unit Price incl. VAT
30
Spacer
GU05235531
£56,64 Unit Price incl. VAT
31
Pin
GU05234631
£5,16 Unit Price incl. VAT
32
Circlip
GU90271022
£1,42 Unit Price incl. VAT
33
Bearing
834764
£7,92 Unit Price incl. VAT
34
O-ring 20,24X2,62
GU90706203
£1,39 Unit Price incl. VAT
35
Oil plug
GU12022600
£36,13 Unit Price incl. VAT
36
Bushing 6,6x9x13
GU19002020
£8,24 Unit Price incl. VAT
37
Special hex socket screw M6x55
2A000591
£1,60 Unit Price incl. VAT
38
Shift cam cpl.
2A000222
£160,69 Unit Price incl. VAT
39
Gasket 8.7x14.2x1.3
B063025
£4,70 Unit Price incl. VAT
40
Capteur
1A011654
Not Available
41
Ball bearing 6202-2RSH/C3 LHT23
2A000097
£10,37 Unit Price incl. VAT
42
Cover
GU93180220
£3,68 Unit Price incl. VAT
43
Breather plug
2A000823
£11,11 Unit Price incl. VAT
44
Gasket 10x18x1,5
GU01528930
£4,21 Unit Price incl. VAT
45
Crinkle washer D15 F8,4 S1,5 - INOX
658837
£0,95 Unit Price incl. VAT
46
Hex socket screw M8x40
GU98680440
£1,02 Unit Price incl. VAT

Find the detailed :label MOTO GUZZI LAVERDA SCARABEO diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original MOTO GUZZI LAVERDA SCARABEO part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
