1
Engine displacement
500
2
Model
SCARABEO
3
Year
2005
4
Trim
Scarabeo
5
Parts Catalog
RH controls
6
Parts Diagram
Parts Catalog
LH Controls
by
Water cooler
RH controls
1
2
3
4
5
6
7
8
9
9
10
11
11
12
13
14
15
16
17
1
Front master cilinder
AP8133679
Not Available
1
Front master cilinder
AP8113928
Not Available
2
Levier frein;
AP8118542
£53,84 Unit Price incl. VAT
3
Handgrip pair, black
AP8118657
Not Available
4
Pump revision kit
AP8133749
Not Available
4
Kit révision pompe;
AP8113864
£37,90 Unit Price incl. VAT
5
Pump cover
AP8113863
Not Available
6
Pump cover screw
AP8113859
Not Available
7
Vis levier
AP8125757
£12,31 Unit Price incl. VAT
8
Ecrou
AP8213298
£17,00 Unit Price incl. VAT
9
Déviateur feux dte
AP8127572
£35,30 Unit Price incl. VAT
9
RH lights selector
AP8127289
Not Available
10
Siège comm. gaz;
AP8118582
£8,51 Unit Price incl. VAT
11
Gas trasmission return
AP8114447
Not Available
12
Stop switch
AP8127571
Not Available
12
stop Button
AP8127305
Not Available
13
Vis
AP8150053
£2,48 Unit Price incl. VAT
14
Rondelle
AP8113004
£1,87 Unit Price incl. VAT
15
Vis tuyau huile
AP8113003
£2,08 Unit Price incl. VAT
16
Vis
AP8152268
£1,88 Unit Price incl. VAT
17
Vis
AP8152270
£1,88 Unit Price incl. VAT

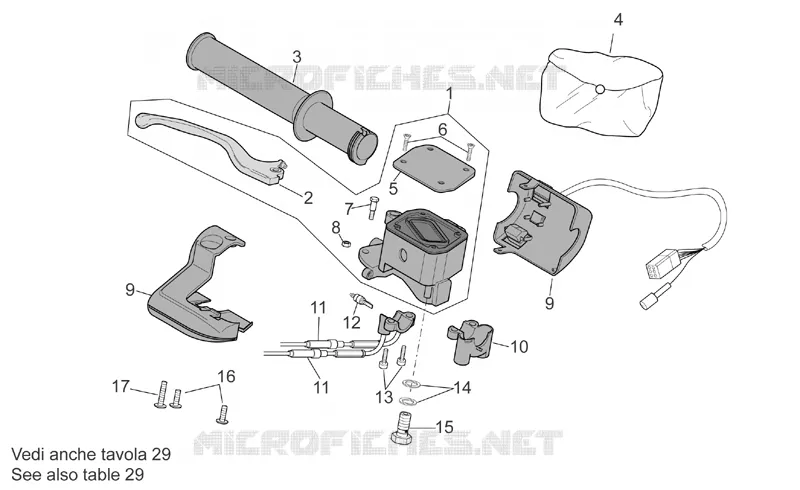

Find the detailed RH controls MOTO GUZZI LAVERDA SCARABEO diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original MOTO GUZZI LAVERDA SCARABEO part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
