Engine displacement
500
2
Model
SCARABEO
3
Year
2005
4
Trim
Scarabeo
5
Parts Catalog
Top box
6

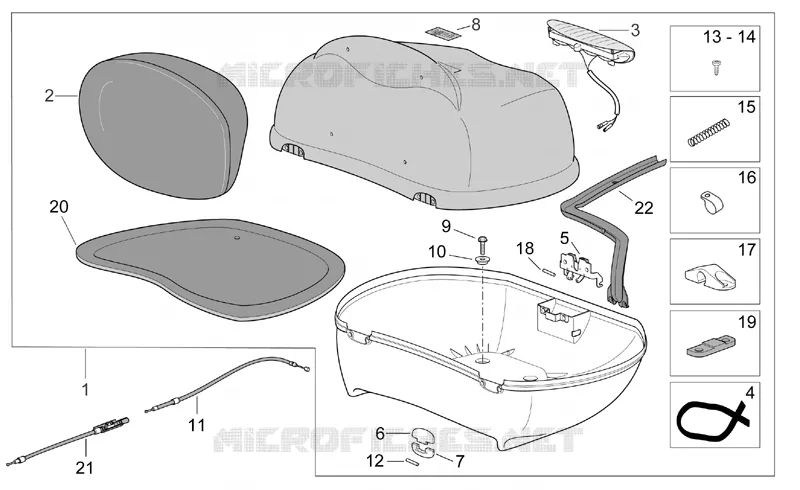

Parts Diagram
Parts Catalog
Rear body
by
Side cases
Top box
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
1
Top box, blue
AP8168632
Not Available
1
Top box, silver
AP8178225
Not Available
1
Top box, grey
AP8178667
Not Available
1
Top box, red
AP8178228
Not Available
1
Top box, blue
AP8178226
Not Available
1
Top box, black
AP8178666
Not Available
1
Top box, grey
AP8178669
Not Available
1
Top box, silver
AP8168631
Not Available
1
Top box, beige
AP8168633
Not Available
1
Top box, beige
AP8178227
Not Available
1
Top box, red
AP8168634
Not Available
2
Seat cushion
AP8129377
Not Available
3
Stop light
AP8127356
£92,96 Unit Price incl. VAT
4
Gasket d.5
AP8144245
£2,40 Unit Price incl. VAT
5
Saddle closing plate
AP8102947
£39,55 Unit Price incl. VAT
6
Upper hinge, grey
AP8168636
Not Available
6
Upper hinge, black
AP8168635
Not Available
7
Lower hinge, black
AP8168637
Not Available
7
Lower hinge, grey
AP8168638
Not Available
8
"Aprilia" dataplate
AP8177056
Not Available
9
Screw w/ flange M8x25
AP8152287
£2,63 Unit Price incl. VAT
10
T bush
AP8121151
£2,33 Unit Price incl. VAT
11
Lock cable
AP8114454
£36,59 Unit Price incl. VAT
12
Pin
AP8702013
Not Available
13
Self-tap screw 3,9x14
AP8150413
£1,61 Unit Price incl. VAT
14
Self-tapping screw
AP8150444
£1,27 Unit Price incl. VAT
15
Headlight adjuster spring
AP8121023
Not Available
16
Black hose D8
AP8101890
£2,80 Unit Price incl. VAT
17
Top box lock u-bolt
AP8221335
Not Available
18
Pin
AP8121605
Not Available
19
Plate
AP8134799
Not Available
20
Casing
AP8158989
Not Available
21
Top box fastener
AP8114436
£20,17 Unit Price incl. VAT
22
Support plate
AP8158971
Not Available
