OIL PUMP - OIL FILTER for V7 III Racer 750 Euro 4 from 2019

Free shipping for all orders to United Kingdom over £150! See conditions.

OIL PUMP - OIL FILTER

1

Bolt

GU27152885

£10,73 Unit Price incl. VAT

2

Gasket 8,25x15x1

GU12154200

£2,45 Unit Price incl. VAT

3

Couvercle filtre à huile

1A0051995

Not Available

4

O-ring

GU90706444

£1,39 Unit Price incl. VAT

5

Oil filter

2A000633

£24,01 Unit Price incl. VAT

6

Cover

GU31159050

£16,44 Unit Price incl. VAT

7

Washer 6,15x11x0,8

GU95008206

£2,48 Unit Price incl. VAT

8

Washer 18,25x24x1

GU18144350

£6,66 Unit Price incl. VAT

9

Spring

GU94321079

£30,52 Unit Price incl. VAT

10

Soupape réglage pression huile

1A014844

Not Available

11

Oil strainer

1A004549

Not Available

12

O-ring

237553

£1,87 Unit Price incl. VAT

13

Oval head screw

1A005257

£0,96 Unit Price incl. VAT

14

Flat washer 4,2x12x1

013763

Not Available

15

Piston cooling jet

1A004442

Not Available

16

Capteur de pression d'huile minimale

1A011730

£18,94 Unit Price incl. VAT

17

Washer

GU95100309

£2,47 Unit Price incl. VAT

18

Oil pump assembly

1A006053

Not Available

19

Nut M10x1,25

GU92602510

£1,94 Unit Price incl. VAT

20

Washer

AP8152220

£3,24 Unit Price incl. VAT

21

Pump gear

GU20147710

£279,30 Unit Price incl. VAT

22

Hex socket screw M6x35 preimpregnata

1A007008

Not Available

23

Oil filter plug

B015598

Not Available

24

O-ring 31,47x1,78

285536

£1,64 Unit Price incl. VAT

25

Roller

GU92296723

£12,88 Unit Price incl. VAT

26

Pin

GU19018920

£4,40 Unit Price incl. VAT

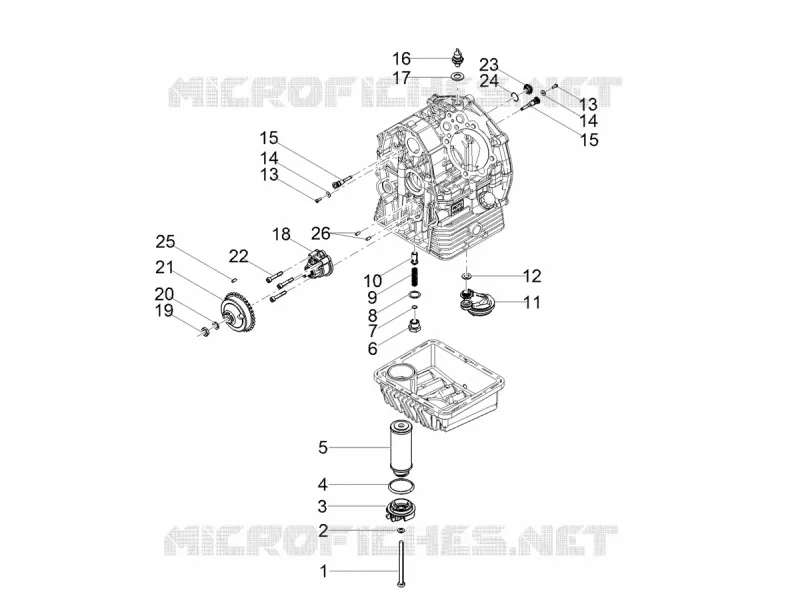

Find the detailed :label MOTO GUZZI LAVERDA SCARABEO diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original MOTO GUZZI LAVERDA SCARABEO part number.

The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
