1
Engine displacement
750
2
Model
V7
3
Year
2020
4
Trim
V7 III Racer 10th Anniversary 750 Euro 4 ABS
5
Parts Catalog
GEAR CHANGE MECHANISM
6
Parts Diagram
Parts Catalog
FOOTRESTS
by
CLUTCH LEVER
GEAR CHANGE MECHANISM
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
36
37
38
39
40
41
41
42
43
44
45
45
45
46
46
46
47
1
Boîte de vitesses cpl.
2A0009125
£3 111,28 Unit Price incl. VAT
2
BOUCHON FILTRE OIL
B015598
Not Available
3
JOINT BOUCHON VIDANGE LEADER
285536
£1,64 Unit Price incl. VAT
4
Filtre à huile
B018020
£2,02 Unit Price incl. VAT
5
O-ring 20.35x1.78
B017406
Not Available
6
Cloche embrayage
2A0009105
£380,18 Unit Price incl. VAT
7
Ressort
B064113
£3,97 Unit Price incl. VAT
8
Vis
GU90353014
£7,98 Unit Price incl. VAT
9
Entretoise
GU05234230
£9,40 Unit Price incl. VAT
10
Levier
B064112
£12,23 Unit Price incl. VAT
11
Bague
GU05238431
£15,12 Unit Price incl. VAT
12
Preselecteur complet
2A000926
£69,78 Unit Price incl. VAT
13
Ressort
GU05238231
£5,18 Unit Price incl. VAT
14
Ressort
B063956
£33,08 Unit Price incl. VAT
15
Entretoise
2A000467
£3,77 Unit Price incl. VAT
16
Butée
GU05239330
£1,93 Unit Price incl. VAT
17
Bague seeger
GU90271014
£0,89 Unit Price incl. VAT
18
Bague d'étanchéité 14x24x7
GU90401424
£34,70 Unit Price incl. VAT
19
Carter de boîte vitesses
2A000908
Not Available
20
Tige
2A000224
£15,89 Unit Price incl. VAT
21
Fourchette 2-3 vitesses
2A000226
£33,48 Unit Price incl. VAT
22
Fourchette 5a - 6a vitesses
2A000227
£37,45 Unit Price incl. VAT
23
Fourche
2A000225
£36,12 Unit Price incl. VAT
24
Vis
2A000415
£12,83 Unit Price incl. VAT
25
Vis
B013608
£1,98 Unit Price incl. VAT
26
RONDELLE
873905
£10,52 Unit Price incl. VAT
27
ECROU
2A000306
£3,80 Unit Price incl. VAT
28
VIS
2A000241
£0,48 Unit Price incl. VAT
29
Roulement à billes 61905 - 25X42X9
857250
£11,84 Unit Price incl. VAT
30
Cale
GU05235531
£56,64 Unit Price incl. VAT
31
Vis
GU05234631
£5,16 Unit Price incl. VAT
32
Bague seeger
GU90271022
£1,42 Unit Price incl. VAT
33
Roulement à billes
834764
£7,92 Unit Price incl. VAT
34
Joint torique 20,24X2,62
GU90706203
£1,39 Unit Price incl. VAT
35
Bouchon huile
GU12022600
£36,13 Unit Price incl. VAT
36
Bague 6,6x9x13
GU19002020
£8,24 Unit Price incl. VAT
37
VIS
2A000591
£1,60 Unit Price incl. VAT
38
Tambour cpl
2A000222
£160,69 Unit Price incl. VAT
39
Joint
B063025
£4,70 Unit Price incl. VAT
40
Interrupteur
1A011654
Not Available
41
Roulement à billes
2A000097
£10,37 Unit Price incl. VAT
42
Bouchon
GU93180220
£3,68 Unit Price incl. VAT
43
Bouchon purge
2A000823
£11,11 Unit Price incl. VAT
44
Joint
GU01528930
£4,21 Unit Price incl. VAT
45
RONDELLE
658837
£0,95 Unit Price incl. VAT
46
Vis TCEI M8x40
GU98680440
£1,02 Unit Price incl. VAT
47
Threaded pin
B064079
£4,56 Unit Price incl. VAT

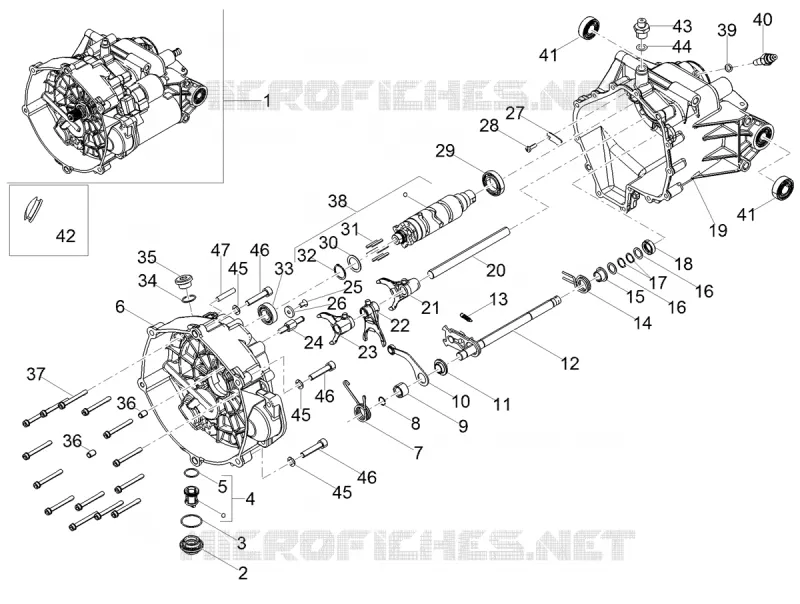

Find the detailed GEAR CHANGE MECHANISM MOTO GUZZI LAVERDA SCARABEO diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original MOTO GUZZI LAVERDA SCARABEO part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
