1
Engine displacement
50
2
Model
SCARABEO
3
Year
2018
4
Trim
Scarabeo 50 2T Street E4
5
Parts Catalog

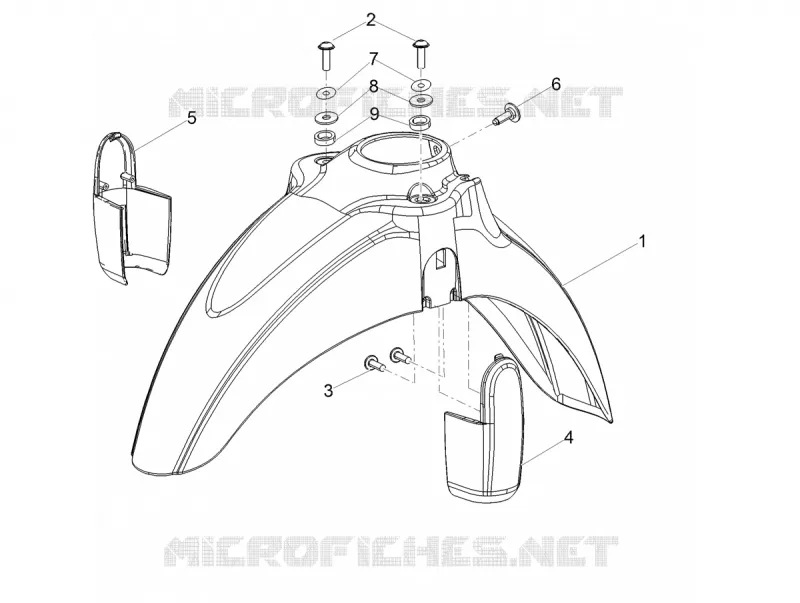

Front mudguard-Pillar
6
Parts Diagram
Parts Catalog
Swing arm
by
Windshield
Front mudguard-Pillar
9
8
7
6
5
4
3
2
1
1
Front mudguard, white
1B005235000XB6
Not Available
1
Front mudguard, black
1B005235000XN2
Not Available
1
Front mudguard, blue
1B005235000DO
Not Available
2
Hex socket screw Black M5x12
896174
£2,48 Unit Price incl. VAT
3
Self-tap screw 3,9x14
AP8150413
£1,61 Unit Price incl. VAT
4
SX sleeve guard
1B005279000EU
£16,18 Unit Price incl. VAT
5
RH sleeve guard
1B005280000EU
£16,18 Unit Price incl. VAT
6
Screw w/ flange M5x12
AP8152302
Not Available
7
Curved spring washer 5,3x10x0,5
AP8150272
£3,66 Unit Price incl. VAT
8
Washer 6,6x18x1,6
841821
£0,62 Unit Price incl. VAT
9
Spacer
1B005246
£3,83 Unit Price incl. VAT

Find the detailed :label MOTO GUZZI LAVERDA SCARABEO diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original MOTO GUZZI LAVERDA SCARABEO part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
