Engine displacement
850
2
Model
V9
3
Year
2017
4
Trim
V9 Roamer 850 E4 ABS
5
Parts Catalog
Fuel tank
6
Parts Diagram
Parts Catalog
Front mudguard-Pillar
by
Instruments
Fuel tank
11
11
10
10
10
9
8
7
6
5
4
3
2
1
1
1
Réservoir essence
2B001629
£1 367,35 Unit Price incl. VAT
1
Réservoir essence
2H001249500YG3
£711,96 Unit Price incl. VAT
1
Fuel tank, red
2H001446500XR7
£1 357,21 Unit Price incl. VAT
1
Réservoir essence
2H001401500Q4
£1 427,34 Unit Price incl. VAT
2
Vis bride
AP8152288
£2,20 Unit Price incl. VAT
3
SILENT BLOCK BEQUILLE
AP8120455
£10,54 Unit Price incl. VAT
4
Rondelle
AP8150018
£1,88 Unit Price incl. VAT
5
Caoutchouc
GU91551131
£2,16 Unit Price incl. VAT
6
Douille en "T"
2B002944
£3,34 Unit Price incl. VAT
7
Vis
2B002567
£0,20 Unit Price incl. VAT
8
Fuel pump
1D001450
Not Available
9
Tuyau
2B002486
£104,83 Unit Price incl. VAT
10
Caoutchouc
GU66103415
£16,24 Unit Price incl. VAT
11
Hex socket screw M8x16
GU98682416
Not Available

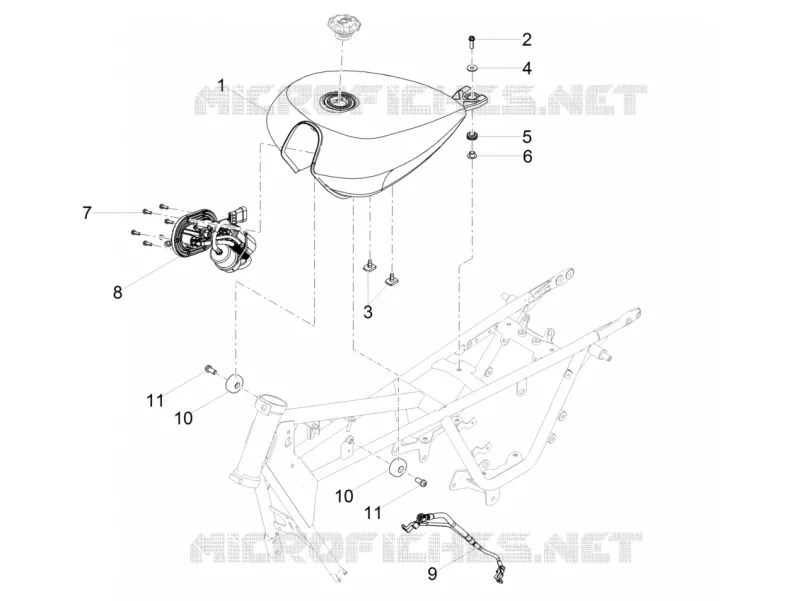

Find the detailed Fuel tank MOTO GUZZI LAVERDA SCARABEO diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original MOTO GUZZI LAVERDA SCARABEO part number.
