Engine displacement
850
2
Model
V9
3
Year
2017
4
Trim
V9 Roamer 850 E4 ABS
5
Parts Catalog
Front wheel
6
Parts Diagram
Parts Catalog
Central stand
by
Gear box - Gear assembly
Front wheel
19
18
17
16
15
14
13
12
11
10
9
8
7
7
6
6
5
4
3
2
1
1
Axe de roue AV
2B001139
£44,90 Unit Price incl. VAT
2
Bouchon 15 mm
GU93180111
£2,63 Unit Price incl. VAT
3
Entretoise D
GU32615660
£41,88 Unit Price incl. VAT
4
Front tyre 130/90 - 16
2B002383
£160,91 Unit Price incl. VAT
5
Roue avant
2B001058
£1 157,14 Unit Price incl. VAT
6
Bague d'étanchéité
GU90402642
£13,84 Unit Price incl. VAT
7
Roulement
GU92204221
£65,62 Unit Price incl. VAT
8
Ecrou
GU92630207
£1,49 Unit Price incl. VAT
9
Entretoise int. roue av.
2B001073
£21,71 Unit Price incl. VAT
10
Soupape tubeless
GU03617710
£27,68 Unit Price incl. VAT
11
Contrepoids
GU14616150
£18,94 Unit Price incl. VAT
12
Disque frein avant
883688
£303,14 Unit Price incl. VAT
13
Phonic wheel
887875
Not Available
14
Flanged TE screw M8x22
887762
Not Available
15
Entretoise G
GU31616384
£22,21 Unit Price incl. VAT
16
Sensor ABS
859792
Not Available
17
Passe-câble
2B001561
£11,30 Unit Price incl. VAT
18
Entretoise
2B001708
£4,70 Unit Price incl. VAT
19
Rondelle
AP8150178
£1,27 Unit Price incl. VAT

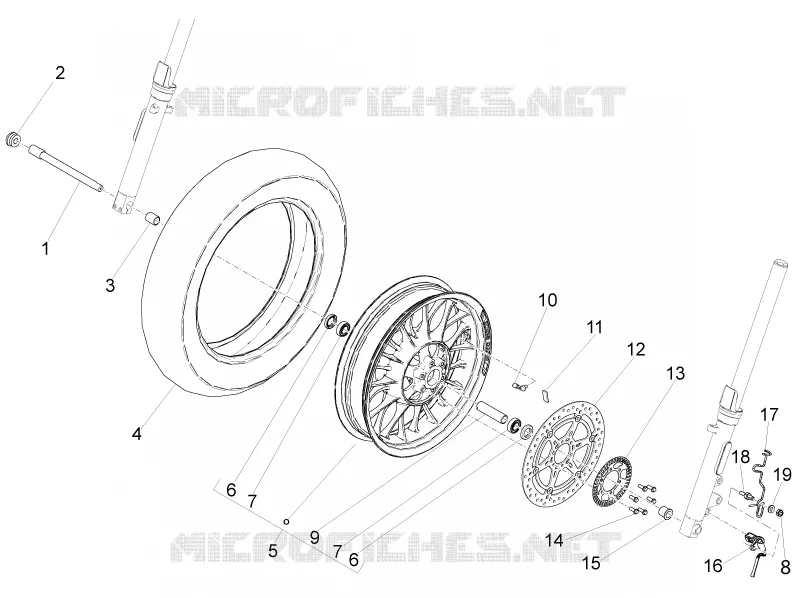

Find the detailed Front wheel MOTO GUZZI LAVERDA SCARABEO diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original MOTO GUZZI LAVERDA SCARABEO part number.
