Clutch for MOTO GUZZI LAVERDA SCARABEO V9 Roamer 850 E4 ABS from 2017

Free shipping for all orders to United Kingdom over £150! See conditions.

Clutch

1

Complete single plate clutch assembly

2A000419

£259,86 Unit Price incl. VAT

2

Vis

GU19067700

£2,51 Unit Price incl. VAT

3

Rondelle 8,4X13X0,8

GU14615901

£2,48 Unit Price incl. VAT

4

Couronne dentée

2A000724

£512,88 Unit Price incl. VAT

5

Washer 6,4x10x0,7

GU14217901

Not Available

6

Vis

2A000774

£2,64 Unit Price incl. VAT

7

Arbre embrayage

2A000792

£144,24 Unit Price incl. VAT

8

Commande embrayage

2A000216

£23,76 Unit Price incl. VAT

9

Roulement à billes 25x52x15

GU92201226

£50,18 Unit Price incl. VAT

10

Joint torique 23,52x1,78

GU90706235

£1,60 Unit Price incl. VAT

11

Bague d'étanchéité

886629

£28,92 Unit Price incl. VAT

12

Spacer

GU19213760

£14,47 Unit Price incl. VAT

13

Nut

GU19356760

Not Available

14

Ball bearing

2A000375

£19,43 Unit Price incl. VAT

15

Pignon embrayage

B013037

£24,71 Unit Price incl. VAT

16

Roulement

2A000376

£23,40 Unit Price incl. VAT

17

Corps extérieur

GU14086100

£71,74 Unit Price incl. VAT

18

Pivot

2A000384

£21,78 Unit Price incl. VAT

19

Bague d'étanchéité

2A000385

£0,61 Unit Price incl. VAT

20

Goupille

GU95500222

£1,26 Unit Price incl. VAT

21

Levier boîte de vitesses

2A000631

£34,31 Unit Price incl. VAT

22

Retour levier démarrage

GU94321105

£1,94 Unit Price incl. VAT

23

Vis

2A000838

£6,77 Unit Price incl. VAT

24

Ecrou m8x1

GU92606508

£1,26 Unit Price incl. VAT

25

Douille

GU14085900

£2,48 Unit Price incl. VAT

26

Bague

GU05217630

£10,75 Unit Price incl. VAT

27

Joint torique 17,13x2,62

GU90706170

£2,00 Unit Price incl. VAT

28

Disque embrayage

2A000770

£153,52 Unit Price incl. VAT

29

Bague

2A000418

£5,36 Unit Price incl. VAT

30

Plateau

2A000638

£18,77 Unit Price incl. VAT

31

Renforcement

2A000741

£7,49 Unit Price incl. VAT

32

Bague d'étanchéité

2A000378

£2,20 Unit Price incl. VAT

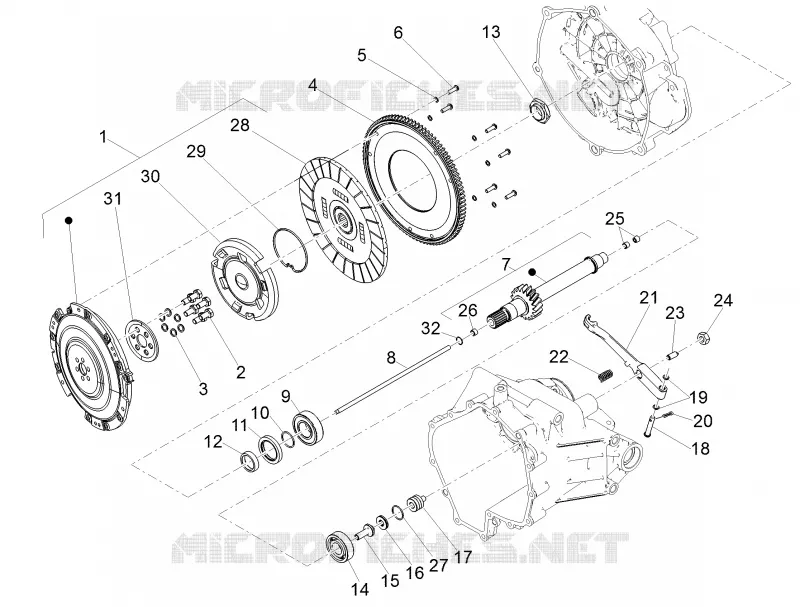

Find the detailed Clutch MOTO GUZZI LAVERDA SCARABEO diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original MOTO GUZZI LAVERDA SCARABEO part number.

The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
