Timing system for V7 III Rough 750 E4 ABS from 2018

Free shipping for all orders to United Kingdom over £150! See conditions.

Timing system

1

Camshaft

1A010701

Not Available

1

Camshaft

1A005712

Not Available

2

Sector

GU19055700

£30,97 Unit Price incl. VAT

3

Tappet

GU19045861

£276,40 Unit Price incl. VAT

4

Rocker arm rod

2A000496

£11,69 Unit Price incl. VAT

5

O-Ring seal ring 2,62x9.19

2A000579

£1,87 Unit Price incl. VAT

6

Rocker arm support

1A010730

Not Available

7

Curved spring washer

1A005951

Not Available

8

Rocker shaft

2A000528

£61,15 Unit Price incl. VAT

9

Fork

2A000521

£33,46 Unit Price incl. VAT

10

Screw w/ flange M5x12

AP8152272

£1,88 Unit Price incl. VAT

11

Chain stretching drive

GU19058220

Not Available

12

Left exhaust right intake rocker

1A004905

Not Available

13

Right exhaust left intake rocker

1A004903

Not Available

14

Adjuster screw

1A004907

Not Available

15

Nut

GU10034100

£13,40 Unit Price incl. VAT

16

Gasket ring

1A006861

Not Available

17

Snap ring

GU90353029

£1,43 Unit Price incl. VAT

18

Washer

GU95129115

£0,86 Unit Price incl. VAT

19

Plate

1A005955

Not Available

20

Camshaft chain

GU19058021

£205,50 Unit Price incl. VAT

21

Timing system gear

1A006243

Not Available

22

Spacer

1A006119

Not Available

23

Oring

1A006127

Not Available

24

Phonic wheel

1A0057145

Not Available

25

FLANGED HEXAGONAL HEAD SCREW

1A008576

Not Available

26

screw

GU98882316

£0,89 Unit Price incl. VAT

27

Plate

2A000527

£11,90 Unit Price incl. VAT

28

Torx Screw M5x12

B014598

£1,27 Unit Price incl. VAT

29

Camshaft retaining plate

1A009346

Not Available

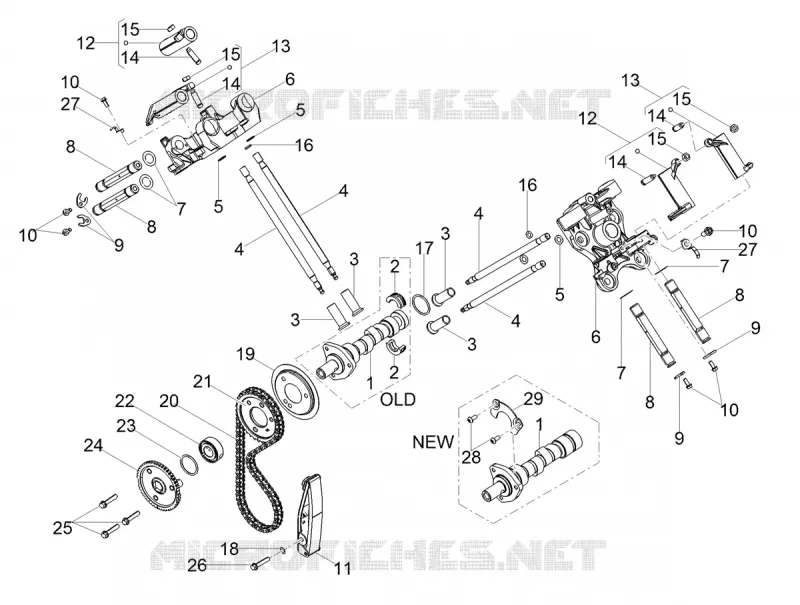

Find the detailed :label MOTO GUZZI LAVERDA SCARABEO diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original MOTO GUZZI LAVERDA SCARABEO part number.

The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
