Gear box - Gear assembly for MOTO GUZZI LAVERDA SCARABEO V7 III Stone 750 E4 ABS from 2018

Free shipping for all orders to United Kingdom over £150! See conditions.

Gear box - Gear assembly

1

Roulement à billes 20x52x15

GU92201822

£33,05 Unit Price incl. VAT

2

RONDELLE

873928

£10,54 Unit Price incl. VAT

3

Vis

B013608

£1,98 Unit Price incl. VAT

4

Rondelle

1A000566

Not Available

5

Arbre primaire

2A000625

£168,14 Unit Price incl. VAT

6

MOYEU

849308

£31,02 Unit Price incl. VAT

7

Engr. 5e sur prim.

1A000360

Not Available

8

RONDELLE

849424

£3,05 Unit Price incl. VAT

9

Anneau élastique

1A002604

Not Available

10

ENGRANAGE

1A000436

Not Available

11

Rondelle d'appui

B015040

£2,40 Unit Price incl. VAT

12

MOYEU

974162

£34,78 Unit Price incl. VAT

13

Engr. 6e sur sec.

2A000627

£106,06 Unit Price incl. VAT

14

RONDELLE

849396

£3,25 Unit Price incl. VAT

15

CIRCLIPS

974165

£2,95 Unit Price incl. VAT

16

Engr. 2e sur prim.

1A000365

Not Available

17

Ball bearing 20x47x14

848650

Not Available

18

Gasket ring 25X40X7

GU90412541

£22,12 Unit Price incl. VAT

19

Roulement à billes 25x52x15

GU92201226

£50,18 Unit Price incl. VAT

20

Secondary gearbox shaft

2A000203

£107,22 Unit Price incl. VAT

21

MOYEU

849308

£31,02 Unit Price incl. VAT

22

Engr. 2e sur sec.

1A000366

Not Available

23

RONDELLE

849309

£3,13 Unit Price incl. VAT

24

Anneau élastique

1A002604

Not Available

25

Gear 6a Z=24

1A000370

Not Available

26

RONDELLE

849310

£6,13 Unit Price incl. VAT

27

Engr. 3e sur sec.

1A000367

Not Available

28

Engr. 4e sur sec.

1A000368

Not Available

29

Engr. 5e sur sec.

1A000369

Not Available

30

Engr. 1e sur sec.

2A000629

£131,08 Unit Price incl. VAT

31

Pompe à huile complète

B018448

£21,91 Unit Price incl. VAT

32

VIS

2A000241

£0,48 Unit Price incl. VAT

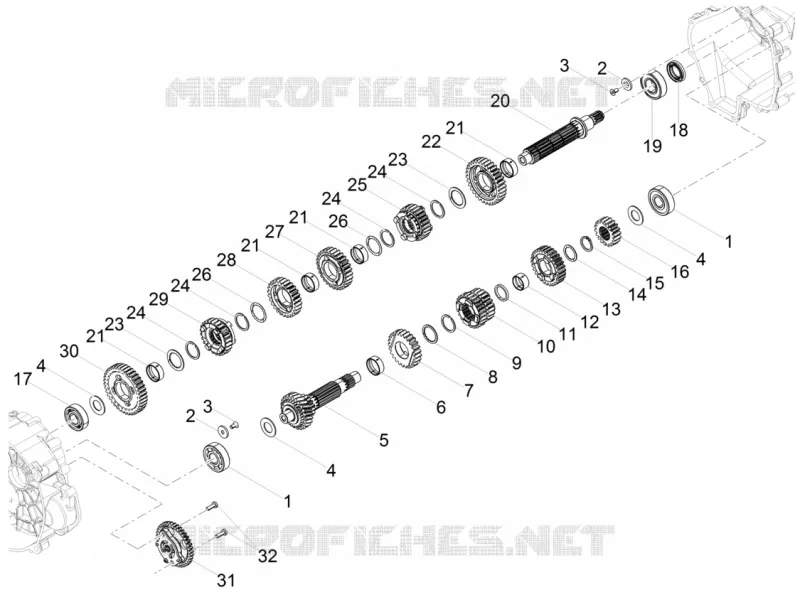

Find the detailed Gear box - Gear assembly MOTO GUZZI LAVERDA SCARABEO diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original MOTO GUZZI LAVERDA SCARABEO part number.

The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
