1
Engine displacement
1100
2
Model
CALIFORNIA
3
Year
1994
4
Trim
California
5
Parts Catalog
Front fork
6
Parts Diagram
Parts Catalog
Air filter
by
Swing arm
Front fork
1
2
3
4
5
6
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
23
24
24
25
26
27
28
29
30
31
32
33
34
35
36
36
37
38
39
40
41
42
43
44
45
46
47
1
Lower plate
GU30494060
Not Available
2
Vis M10x60
GU98620560
£3,65 Unit Price incl. VAT
3
Washer 10,2x18x2
GU95004210
£0,96 Unit Price incl. VAT
4
Spacer
GU91181110
Not Available
5
Fork upper plate
GU29493150
Not Available
6
Vis M10X40
GU98620540
£1,94 Unit Price incl. VAT
7
Rondelle 17X27X2
GU95004217
£3,86 Unit Price incl. VAT
8
Steering lock bush
GU18516660
Not Available
9
RH sleeve
GU30522561
Not Available
10
LH sleeve
GU30522661
Not Available
11
Hex socket screw
GU98622316
Not Available
12
Rondelle
GU95100116
£1,60 Unit Price incl. VAT
13
Tige
GU30525461
£472,16 Unit Price incl. VAT
14
Gasket ring
GU30532861
Not Available
15
Dust cover
GU29524550
£12,96 Unit Price incl. VAT
16
Front shock absorber
GU29525360
Not Available
17
Spring
GU29526960
Not Available
18
Bushing
GU29527960
£11,36 Unit Price incl. VAT
19
Return spring
GU29526650
Not Available
20
Adjustment kit
GU28999590
Not Available
21
Joint torique 23,52x1,78
GU90706235
£1,60 Unit Price incl. VAT
22
Gasket ring
GU90706282
£0,65 Unit Price incl. VAT
23
RH headlight support
GU29496150
Not Available
23
RH headlight support
GU30496160
Not Available
24
LH headlight support
GU29496250
Not Available
24
LH headlight support
GU30496260
Not Available
25
Garniture
GU10528900
£4,45 Unit Price incl. VAT
26
screw
GU98820545
£6,19 Unit Price incl. VAT
27
Vis 25 mm
GU98622525
£2,04 Unit Price incl. VAT
28
Tuyau anti-frottement sup.
GU29526360
£3,62 Unit Price incl. VAT
29
Lower anti-rubbing pipe
GU29526361
Not Available
30
Nut
GU92602210
Not Available
31
Nylon washer
GU28526590
Not Available
32
Spacer
GU23497910
£3,97 Unit Price incl. VAT
33
Hex socket screw
GU98622425
£6,13 Unit Price incl. VAT
34
Handlebar fixing plate
GU23500210
Not Available
35
screw
GU98620435
Not Available
36
Bouchon
GU23943410
£3,06 Unit Price incl. VAT
37
Pad
GU28527633
Not Available
38
Stop ring
GU30526261
Not Available
39
Spacer
GU30528161
Not Available
40
Upper bush
GU30526761
Not Available
41
Lower bush
GU30525861
Not Available
42
Catadioptre, ambre
GU31781665
£13,38 Unit Price incl. VAT
43
Dowel
GU98450108
Not Available
44
Dowel
GU98470206
Not Available
45
Bouchon 15 mm
GU93180111
£2,63 Unit Price incl. VAT
46
Joint torique
GU90706298
£1,79 Unit Price incl. VAT
47
Bouchon
GU23943510
£3,34 Unit Price incl. VAT

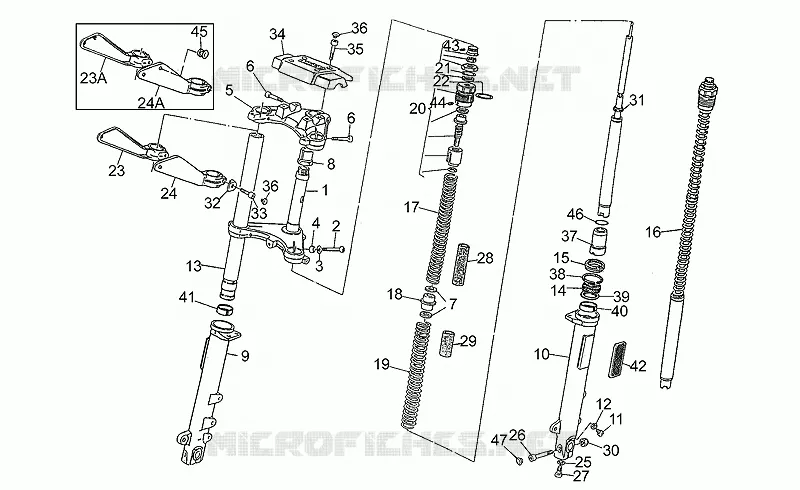

Find the detailed Front fork MOTO GUZZI LAVERDA SCARABEO diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original MOTO GUZZI LAVERDA SCARABEO part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
