1
Engine displacement
1100
2
Model
CALIFORNIA
3
Year
1994
4
Trim
California
5
Parts Catalog
Digiplex electrical system
6
Parts Diagram
Parts Catalog
Frame
by
Injection wiring
Digiplex electrical system
1
2
3
5
6
6
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
1
ECU MED 446A
GU29721450
Not Available
1
ECU MED500A
GU30721460
Not Available
2
Câbles injection
GU30722160
£48,46 Unit Price incl. VAT
3
Relay Siemens A302/B1008
GU30732560
£40,60 Unit Price incl. VAT
5
Hex socket screw
GU98622318
£0,61 Unit Price incl. VAT
6
Rondelle spéciale
GU61013800
£1,26 Unit Price incl. VAT
7
Ecrou en cage
GU92660601
£1,58 Unit Price incl. VAT
8
Washer 5,3x10x0,5
GU95100121
Not Available
9
screw
GU98622312
Not Available
10
pipe
GU30108160
Not Available
11
Timing and rev sensor
GU29721660
Not Available
12
O-ring
GU90706141
Not Available
13
Joint 0,5 mm
GU29722760
£2,65 Unit Price incl. VAT
14
Vis M5X10
GU98622210
£1,02 Unit Price incl. VAT
15
Rondelle
GU95004205
£1,13 Unit Price incl. VAT
16
Bobine HT
GU30716500
£206,63 Unit Price incl. VAT
17
Coil holder
GU28716748
Not Available
18
Hex socket screw
GU98622125
£0,50 Unit Price incl. VAT
19
Rondelle 4,3x8x1,5
GU95021104
£1,26 Unit Price incl. VAT
20
Vis
GU98622310
£1,26 Unit Price incl. VAT
21
Silent-block
GU93222020
Not Available
22
Ecrou
GU92602206
£1,68 Unit Price incl. VAT
23
Capuchon
GU14717600
£3,04 Unit Price incl. VAT
24
HT cable
GU17718350
Not Available
25
Sparkplug cap NGK
GU30717410
Not Available
26
Bougie NGK BPR6ES
GU30717061
£8,90 Unit Price incl. VAT

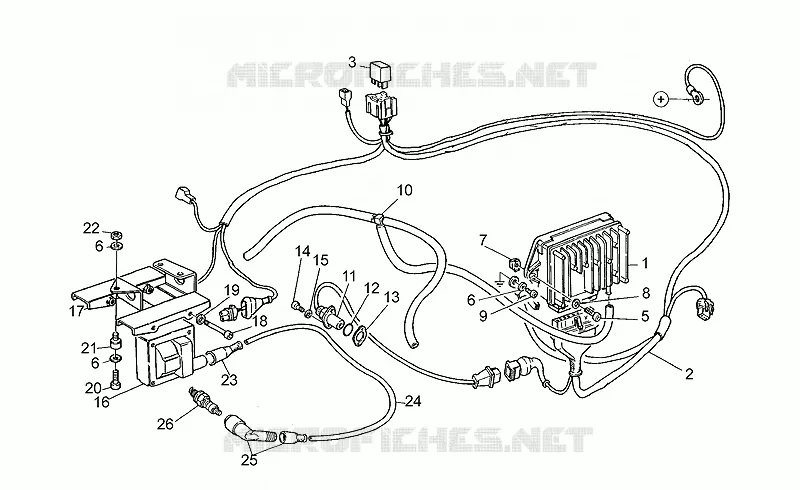

Find the detailed Digiplex electrical system MOTO GUZZI LAVERDA SCARABEO diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original MOTO GUZZI LAVERDA SCARABEO part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
