1
Engine displacement
1100
2
Model
CALIFORNIA
3
Year
1994
4
Trim
California
5
Parts Catalog
Rear wheel
6
Parts Diagram
Parts Catalog
Front wheel
by
Saddle-Central bod
Rear wheel
1
2
3
4
5
6
7
7
8
9
10
11
12
13
14
15
16
17
19
20
21
22
23
24
25
26
27
28
29
30
1
Rear wheel
GU30630660
Not Available
2
Rayon court
GU30631160
£8,08 Unit Price incl. VAT
3
Rayon long
GU30631430
£8,08 Unit Price incl. VAT
4
Nipples
GU27611710
Not Available
5
Contrepoids 20 gr.
GU12616102
£4,02 Unit Price incl. VAT
5
Contrepoids 15 gr.
GU12616101
£4,02 Unit Price incl. VAT
5
Contrepoids 30 gr.
GU12616103
£8,27 Unit Price incl. VAT
6
Flange
GU30632460
Not Available
7
Roulement à billes 20X47X14
GU92204220
£10,28 Unit Price incl. VAT
8
Bague seeger 47X50,5
GU90272047
£7,98 Unit Price incl. VAT
9
Brake disc
GU30635860
Not Available
10
Flange
GU30613760
Not Available
11
DOUILLE
GU28613560
£21,96 Unit Price incl. VAT
12
Ressort à godet
GU28618860
£3,80 Unit Price incl. VAT
13
Bague seeger
GU90271022
£1,42 Unit Price incl. VAT
14
Vis
GU30611460
£4,01 Unit Price incl. VAT
15
Axe de roue AR
GU30633360
£21,92 Unit Price incl. VAT
16
Vis M8X30
GU98622430
£1,58 Unit Price incl. VAT
17
Rondelle 8,4X13X0,8
GU14615901
£2,48 Unit Price incl. VAT
19
Rondelle
GU17633550
£2,76 Unit Price incl. VAT
20
Primary drive / Cush drive
GU01336800
£14,40 Unit Price incl. VAT
21
O-ring
GU90706490
£1,61 Unit Price incl. VAT
22
Disque piece en caoutchouc
GU30335260
£1 897,07 Unit Price incl. VAT
23
Anneau élastique
GU14335303
£115,37 Unit Price incl. VAT
24
Plaquette
GU17335950
£3,13 Unit Price incl. VAT
25
Rondelle spéciale
GU61013800
£1,26 Unit Price incl. VAT
26
Vis
GU98054312
£1,02 Unit Price incl. VAT
27
Entretoise
GU30634160
£136,69 Unit Price incl. VAT
28
Washer
GU14634400
Not Available
29
Nut
GU29616450
£24,96 Unit Price incl. VAT
30
Jante arrière
GU30630760
£161,52 Unit Price incl. VAT

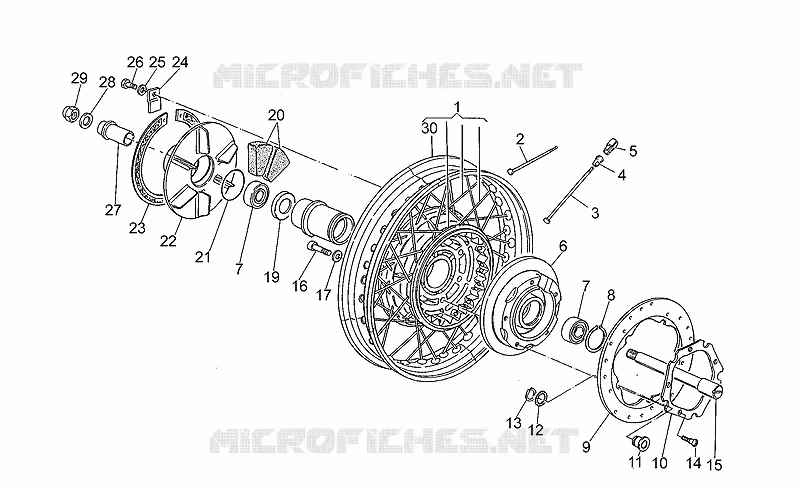

Find the detailed Rear wheel MOTO GUZZI LAVERDA SCARABEO diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original MOTO GUZZI LAVERDA SCARABEO part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
