1
Engine displacement
1100
2
Model
CALIFORNIA
3
Year
1994
4
Trim
California
5
Parts Catalog
Gear lever I
6
Parts Diagram
Parts Catalog
Exhaust unit
by
Gear lever II
Gear lever I
1
2
3
4
5
6
7
7
8
9
10
11
12
13
14
14
15
16
17
18
19
20
21
22
23
24
25
25
26
27
1
Complete gearchange lever
GU17250840
£164,98 Unit Price incl. VAT
2
Bushing 19 mm
GU18252050
Not Available
3
Pédale en caoutch.
GU13432640
£9,67 Unit Price incl. VAT
4
Vis
GU98230816
£1,58 Unit Price incl. VAT
5
Rondelle élastique
GU61270300
£1,70 Unit Price incl. VAT
6
Washer
GU18259151
Not Available
7
Circlip
GU90271008
£0,89 Unit Price incl. VAT
8
Change gear tie rod compl.
GU18257651
Not Available
9
PIVOT
GU18257551
£70,18 Unit Price incl. VAT
10
Nut
GU92690073
Not Available
11
LEVIER
GU18256950
£45,00 Unit Price incl. VAT
12
Bushing
GU17252050
£2,40 Unit Price incl. VAT
13
screw
GU98053660
£2,40 Unit Price incl. VAT
14
Washer
GU95100409
Not Available
15
Ressort
GU94322185
£10,28 Unit Price incl. VAT
16
Low nut M12x1,25
GU92602512
£1,57 Unit Price incl. VAT
17
Pin
GU95770265
Not Available
18
Washer
GU95129110
Not Available
19
Goupille
GU95500222
£1,26 Unit Price incl. VAT
20
Fork
GU18257801
Not Available
21
Fourchette
GU12626800
£74,86 Unit Price incl. VAT
22
Ecrou
GU92602206
£1,68 Unit Price incl. VAT
23
Ball joint
GU18258101
Not Available
24
screw
GU98052325
£0,56 Unit Price incl. VAT
25
Rondelle spéciale
GU61013800
£1,26 Unit Price incl. VAT
26
Ecrou M6x1
GU92630106
£5,03 Unit Price incl. VAT
27
Lever
GU18258201
Not Available

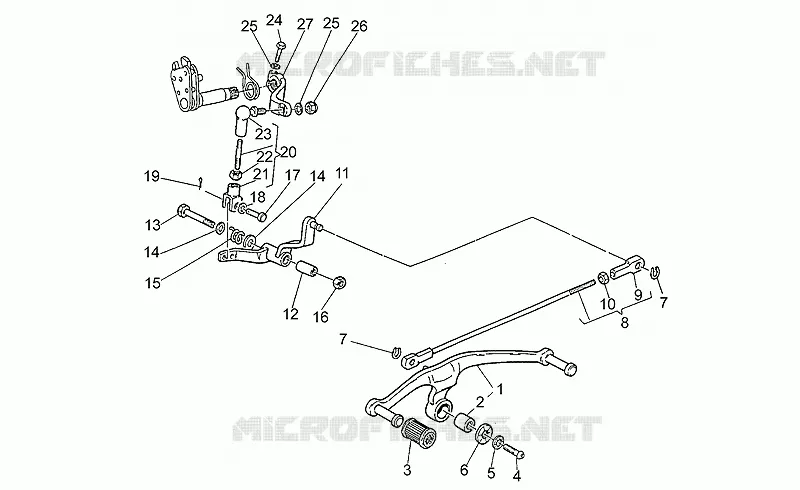

Find the detailed Gear lever I MOTO GUZZI LAVERDA SCARABEO diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original MOTO GUZZI LAVERDA SCARABEO part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
