1
Engine displacement
1100
2
Model
CALIFORNIA
3
Year
1994
4
Trim
California
5
Parts Catalog
Throttle body
6
Parts Diagram
Parts Catalog
Crank-case
by
Timing system
Throttle body
1
2
3
3
4
5
6
6
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
1
Throttle body
GU30112570
Not Available
1
Throttle assy
GU03112560
£3 285,23 Unit Price incl. VAT
2
Injector IVV031
GU30530570
Not Available
3
Potentiométre
GU01530500
£510,00 Unit Price incl. VAT
3
Détec.corps papillon
GU30530501
£219,20 Unit Price incl. VAT
4
Tie rod
GU29530562
£53,57 Unit Price incl. VAT
5
Manchon
GU30114470
£23,16 Unit Price incl. VAT
6
Collier 60x62x10
GU93305060
£13,44 Unit Price incl. VAT
7
Hose
GU30114370
Not Available
8
Pipe d.
GU30115070
£24,23 Unit Price incl. VAT
9
LH manifold
GU30115071
Not Available
10
Vis M6X25
GU98622325
£1,02 Unit Price incl. VAT
11
Washer 6,15x11x0,8
GU95004206
Not Available
12
Vis
GU98310610
£1,61 Unit Price incl. VAT
13
Rondelle
GU95100116
£1,60 Unit Price incl. VAT
14
Stud bolt
GU96506039
£9,89 Unit Price incl. VAT
15
Rondelle spéciale
GU61013800
£1,26 Unit Price incl. VAT
16
Ecrou
GU92781062
£10,21 Unit Price incl. VAT
17
Gasket
GU28115560
£2,16 Unit Price incl. VAT
18
Throttle cable
GU30117570
Not Available
19
Choke cable
GU30132870
Not Available
20
Ressort
GU94321070
£3,60 Unit Price incl. VAT
21
COUVERCLE
GU29113360
£12,64 Unit Price incl. VAT
21
RH body cover
GU30113370
Not Available
22
Couvercle G
GU29113460
£12,64 Unit Price incl. VAT
22
LH body cover
GU30113470
Not Available
23
screw
GU98612110
£0,56 Unit Price incl. VAT
24
Rondelle
GU95007204
£1,50 Unit Price incl. VAT
25
Bracket
GU29113035
Not Available
26
Shear rivet
GU30468104
Not Available
27
Adapter cable
GU30738670
Not Available

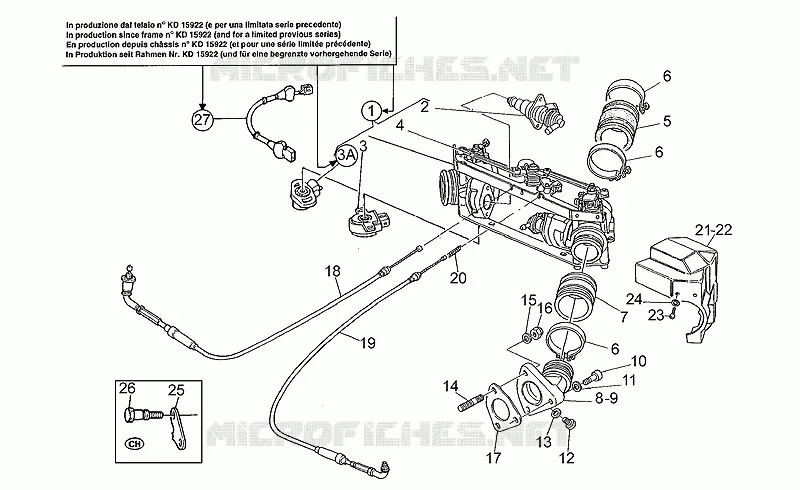

Find the detailed Throttle body MOTO GUZZI LAVERDA SCARABEO diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original MOTO GUZZI LAVERDA SCARABEO part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
