Engine displacement
200
2
Model
PHOENIX
3
Year
2003
4
Trim
Phoenix
5
Parts Catalog
Front/rear brake system
6

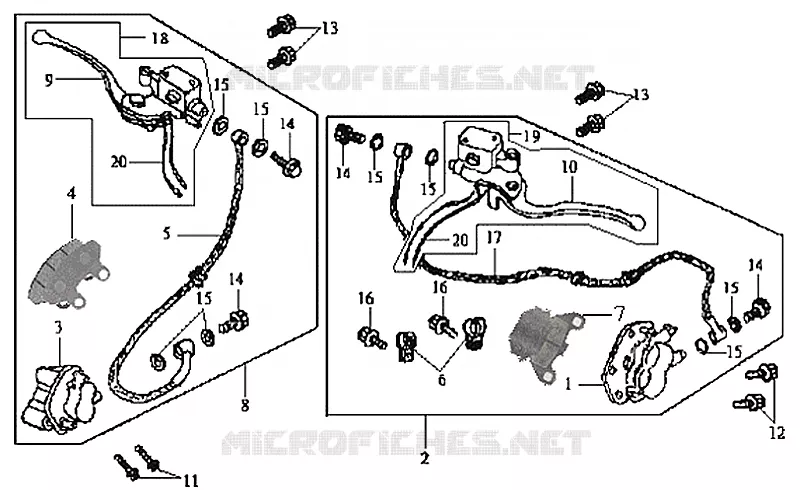

Parts Diagram
Parts Catalog
Handlebar
by
Dashboard
Front/rear brake system
1
2
3
4
5
6
7
8
9
10
11
12
13
13
14
14
14
14
15
15
15
15
15
15
15
16
16
17
18
19
20
20
1
Rear brake caliper
8900806
Not Available
2
Rear brake system
8900805
Not Available
2
Rear brake system
8900592
Not Available
3
Front brake caliper
8900238
Not Available
3
Front brake caliper
8900802
Not Available
4
Front brake pads
8900239
Not Available
5
Brake hose
8900241
Not Available
6
Hose clamp
8900243
Not Available
7
Rear pads pair
8900539
Not Available
7
Rear pads pair blue
8900803
Not Available
7
Rear pads pair
8900804
Not Available
8
Front brake system
8900593
Not Available
9
Front brake lever
8900572
Not Available
10
Rear brake lever
8900573
Not Available
11
Screw w/ flange M8x45
8900375
Not Available
12
Screw w/ flange M8x34
8900378
Not Available
13
Screw w/ flange M6x12
8900385
Not Available
14
Oil pipe screw
8900394
Not Available
15
Washer
8900421
Not Available
16
Screw w/ flange M6x12
8900501
Not Available
17
Rear brake hose
8900231
Not Available
18
Front master cilinder
8900630
Not Available
19
Rear master cylinder
8900631
Not Available
20
Stop switch
8900632
Not Available
