Engine displacement
200
2
Model
PHOENIX
3
Year
2003
4
Trim
Phoenix
5
Parts Catalog
Frame - Central stand
6
Parts Diagram
Parts Catalog
Foot rest
by
Battery
Frame - Central stand
1
2
3
4
5
5
6
6
7
8
9
10
11
12
13
14
15
16
16
17
18
19
20
20
21
22
23
1
Hose clamp
8900013
Not Available
2
Air duct
8900135
Not Available
3
Frame
8900582
Not Available
3
Frame
8900755
Not Available
3
Frame
8900753
Not Available
4
Engine connecting element cpl.
8900258
Not Available
4
Engine connecting element cpl.
8900752
Not Available
5
Rubber spacer
8900259
Not Available
6
Spring
8900260
Not Available
7
Central stand
8900261
Not Available
8
Stand pin A
8900262
Not Available
9
Spring A
8900756
Not Available
9
Spring A
8900263
Not Available
10
Lateral stand
8900264
Not Available
11
RH plate
8900270
Not Available
12
Maintenance
8900271
Not Available
13
Rear RH splash guard
8900325
Not Available
14
Rear LH splash guard
8900326
Not Available
15
Screw w/ flange M12x232
8900376
Not Available
16
Screw w/ flange M10x55
8900381
Not Available
17
Stand pin B
8900382
Not Available
18
Flanged nut
8900405
Not Available
19
Self-locking nut 12MM
8900407
Not Available
20
Flanged nut M8
8900408
Not Available
21
Flanged nut M6
8900480
Not Available
22
Spring B
8900265
Not Available
23
Rubber spacer
8900757
Not Available

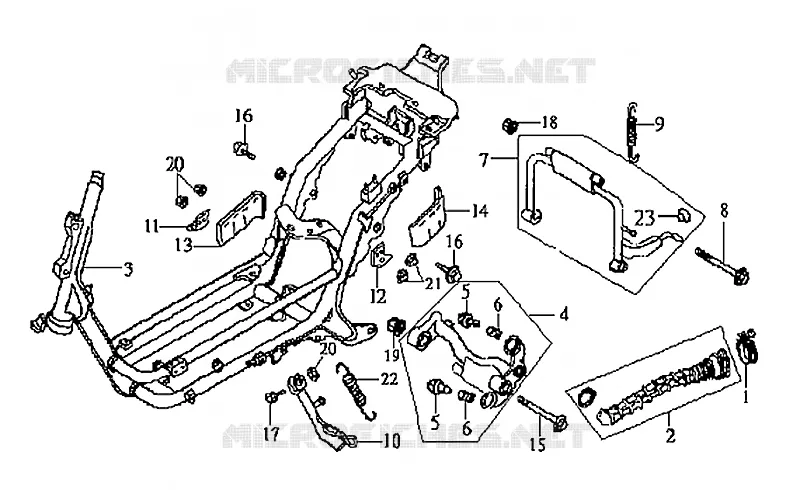

Find the detailed Frame - Central stand MOTO GUZZI LAVERDA SCARABEO diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original MOTO GUZZI LAVERDA SCARABEO part number.
