Engine displacement
850
2
Model
V9
3
Year
2016
4
Trim
V9 Roamer
5
Parts Catalog
Cylinder head - valves
6
Parts Diagram
Parts Catalog
ABS Brake system
by
Front wheel
Cylinder head - valves
1
1
2
2
3
3
4
4
4
5
5
5
6
6
6
7
7
7
8
8
8
9
9
10
11
12
13
1
JOINT CULASSE
1A004661
Not Available
1
Joint tête-cylindre
1A004662
Not Available
1
JOINT CULASSE
1A004660
Not Available
2
Soupape d’admission
1A005424
Not Available
3
Exhaust pipe stud bolt
B017636
Not Available
4
Rondelle d'ar
1A004751
Not Available
5
Joint spie
1A003452
£7,75 Unit Price incl. VAT
6
Ressort rappel soup.
1A004752
Not Available
7
Demi-clavette
871640
£4,10 Unit Price incl. VAT
8
Rondelle d'ar
1A004750
Not Available
9
Soupape échappement
1A005425
Not Available
10
Tête cylindre cpl.
1A0068695
Not Available
11
Tête cylindre cpl.
1A0068705
Not Available
12
Ecrou bridé
1A006659
Not Available
13
Nut M10x1,25
825694
Not Available

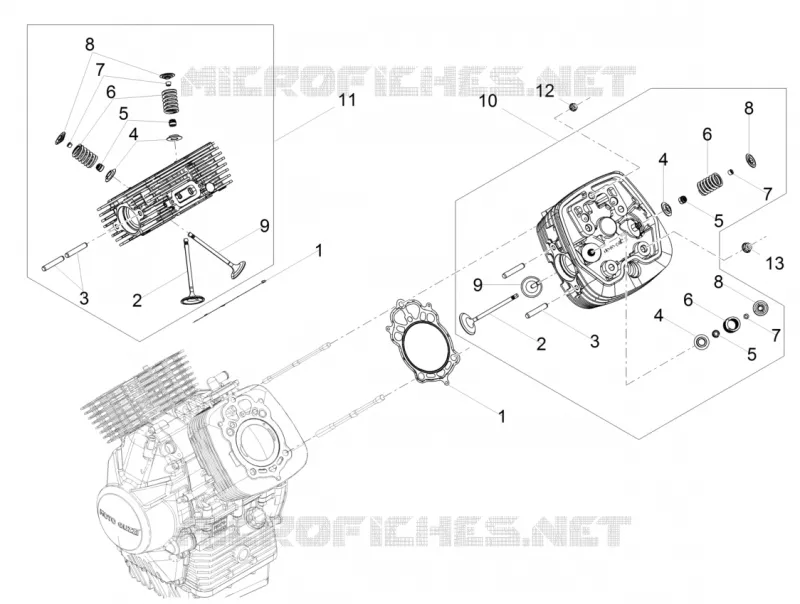

Find the detailed Cylinder head - valves MOTO GUZZI LAVERDA SCARABEO diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original MOTO GUZZI LAVERDA SCARABEO part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
