Engine displacement
850
2
Model
V9
3
Year
2016
4
Trim
V9 Roamer
5
Parts Catalog
Rear lights
6
Parts Diagram
Parts Catalog
Air box
by
Handlebar - Controls
Rear lights
1
2
3
3
4
5
5
6
7
8
8
8
8
9
9
10
10
11
12
13
13
14
14
15
15
16
16
17
18
19
20
21
22
22
23
24
25
26
26
27
28
29
30
31
32
1
Feu arrière
2B002365
£156,43 Unit Price incl. VAT
2
Lampe (ou Ampoule) 12V/5-21W
GU93450224
£7,44 Unit Price incl. VAT
3
Ecrou carré
2B002443
£1,51 Unit Price incl. VAT
4
Calotte
2B002483
£71,58 Unit Price incl. VAT
5
Caoutchouc
AP8220186
£2,48 Unit Price incl. VAT
6
Entretoise
AP8120278
£1,27 Unit Price incl. VAT
7
Plaq.sup. feu
2B002484
£50,77 Unit Price incl. VAT
8
Rondelle spéciale
AP8150536
£24,73 Unit Price incl. VAT
9
Vis
AP8150053
£2,48 Unit Price incl. VAT
10
Vis
GU98612320
£1,06 Unit Price incl. VAT
11
Clignotant avant d.
2D000255
£47,48 Unit Price incl. VAT
12
Clignotant AV g.
2D000256
£47,48 Unit Price incl. VAT
13
ECROU
479175
£1,27 Unit Price incl. VAT
14
Entretoise
840509
£5,14 Unit Price incl. VAT
15
AMPOULE 12V-10W
584332
£3,77 Unit Price incl. VAT
16
TRANSPARENT INDICATEUR
639338
£11,98 Unit Price incl. VAT
17
Catadioptre arrière, rouge
AP8224164
£11,33 Unit Price incl. VAT
18
Support catadioptre;
AP8134448
£29,83 Unit Price incl. VAT
19
Self-locking nut M5
AP8152306
Not Available
20
Washer 8,4x18x2
GU95005310
Not Available
21
Fermeture tabl. bord
2B002541
£29,42 Unit Price incl. VAT
22
Vis taraud pour plast. Inox
AP8150413
£1,61 Unit Price incl. VAT
23
Torx convex big end screw
B016796
Not Available
24
Rivet fileté
AP8201755
£6,38 Unit Price incl. VAT
25
"Douille en ""T"""
AP8121725
£1,88 Unit Price incl. VAT
26
Vis M6X30
GU98682330
£1,26 Unit Price incl. VAT
27
Douille
AP9100053
£1,76 Unit Price incl. VAT
28
Vis bride M6X16
GU98210616
£3,95 Unit Price incl. VAT
29
Support dte clignot.
2B002366
£129,49 Unit Price incl. VAT
30
PASSE CABLE
070286
Not Available
31
Ecrou autobloqu.
AP8152299
£1,88 Unit Price incl. VAT
32
Rondelle 6,4x12x1,2
GU95008306
£0,58 Unit Price incl. VAT

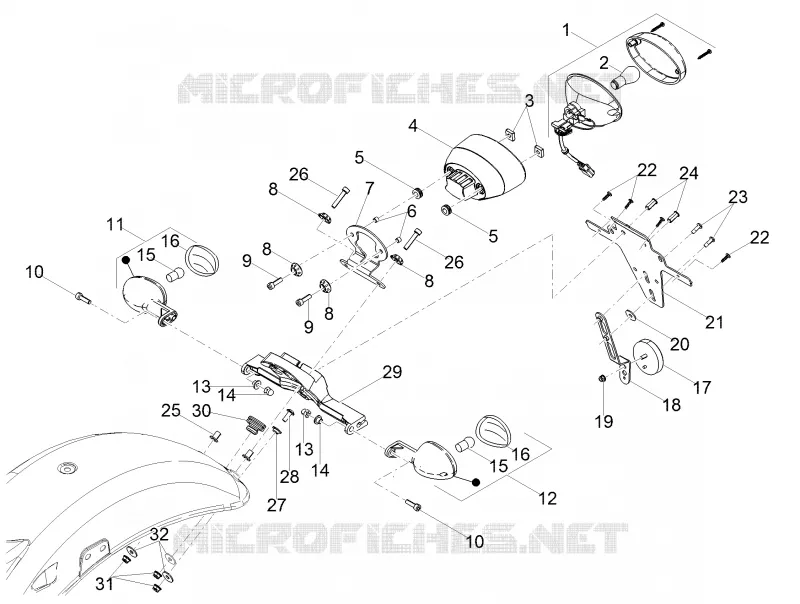

Find the detailed Rear lights MOTO GUZZI LAVERDA SCARABEO diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original MOTO GUZZI LAVERDA SCARABEO part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
