Engine displacement
125
2
Model
SCARABEO
3
Year
2004
4
Trim
Scarabeo E2 (engine Piaggio)
5
Parts Catalog
Acc. - Various I
6
Parts Diagram
Parts Catalog
Engine
by
Acc. - Various II
Acc. - Various I
1
2
3
4
5
6
1
Radio Display,white MobControl
AP8794032
Not Available
2
Radio wiring MobControl
AP8794036
Not Available
3
Spiral cable for Boot
AP8794038
Not Available
4
Earphones with Microphone arm
AP8794039
Not Available
5
Wire Motorola MOD2
AP8701234
Not Available
5
Wire Ericsson
AP8701232
Not Available
5
Wire Sony
AP8701245
Not Available
5
Wire Nokia MOD1
AP8701241
Not Available
5
Wire Nokia MOD2
AP8701242
Not Available
5
Wire Siemens MOD1
AP8701238
Not Available
5
Wire Panasonic MOD3
AP8701237
Not Available
5
Wire Panasonic MOD2
AP8701236
Not Available
5
Wire Samsung MOD1
AP8701243
Not Available
5
Wire Samsung MOD2
AP8701244
Not Available
5
Wire Siemens MOD3
AP8701240
Not Available
5
Wire Siemens MOD2
AP8701239
Not Available
5
Wire Panasonic MOD1
AP8701235
Not Available
5
Wire Motorola MOD1
AP8701233
Not Available
6
Wiring AUX MobControl
AP8797170
Not Available

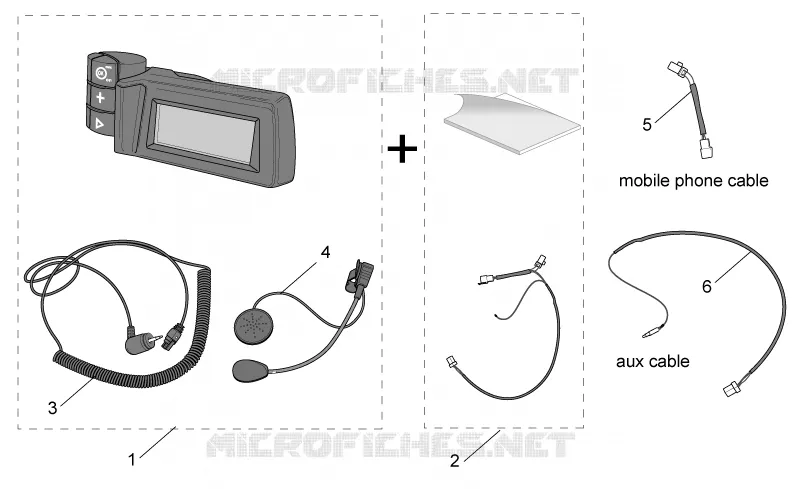

Find the detailed Acc. - Various I MOTO GUZZI LAVERDA SCARABEO diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original MOTO GUZZI LAVERDA SCARABEO part number.
