1
Engine displacement
750
2
Model
V75
3
Year
1993
4
Trim
V 75 PA Vecchio Tipo
5
Parts Catalog
Digiplex ignition
6
Parts Diagram
Parts Catalog
Frame
by
Fuel supply
Digiplex ignition
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
16
17
18
19
20
21
23
23
24
25
26
27
28
28
1
ECU MED 501A
GU31721465
Not Available
2
Holder
GU20723820
£21,55 Unit Price incl. VAT
3
screw
GU98230622
£11,05 Unit Price incl. VAT
4
Anti-vibration plate
GU19025300
£3,41 Unit Price incl. VAT
5
Pipe switch.box tosuction lugs
GU20108120
Not Available
6
Phase/revolution sensor
GU20721610
Not Available
6
Shock absorber BITUBO
GU20550220
£555,91 Unit Price incl. VAT
7
Flange
GU31722065
£5,48 Unit Price incl. VAT
8
screw
GU98620222
£1,20 Unit Price incl. VAT
9
Washer
GU95004205
£1,13 Unit Price incl. VAT
10
HT coil
GU30716500
£206,63 Unit Price incl. VAT
11
Coil holder
GU20716720
£1,82 Unit Price incl. VAT
12
screw
GU98610125
Not Available
13
Washer
GU95004204
£0,72 Unit Price incl. VAT
14
Nut M4x0,7
GU92630104
£0,96 Unit Price incl. VAT
15
screw
GU98620360
£1,58 Unit Price incl. VAT
16
Washer 6,15x11x0,8
GU95004206
Not Available
17
Nut M6x1
GU92630106
£5,03 Unit Price incl. VAT
18
Cap
GU14717600
£3,04 Unit Price incl. VAT
19
HT cable
GU17718350
Not Available
20
Sparkplug cap NGK
GU30717410
Not Available
21
Spark plug NGK BR8ES
GU31717061
Not Available
23
Hose clamp D9
GU61108500
£0,96 Unit Price incl. VAT
24
Rubber spacer
GU91551080
£4,69 Unit Price incl. VAT
25
Spacer
GU91180608
£1,28 Unit Price incl. VAT
26
Washer
GU95000206
£1,02 Unit Price incl. VAT
27
Dado autobloccante M6x1
GU92630206
£2,48 Unit Price incl. VAT
28
Washer 6,4x10x0,7
GU14217901
Not Available

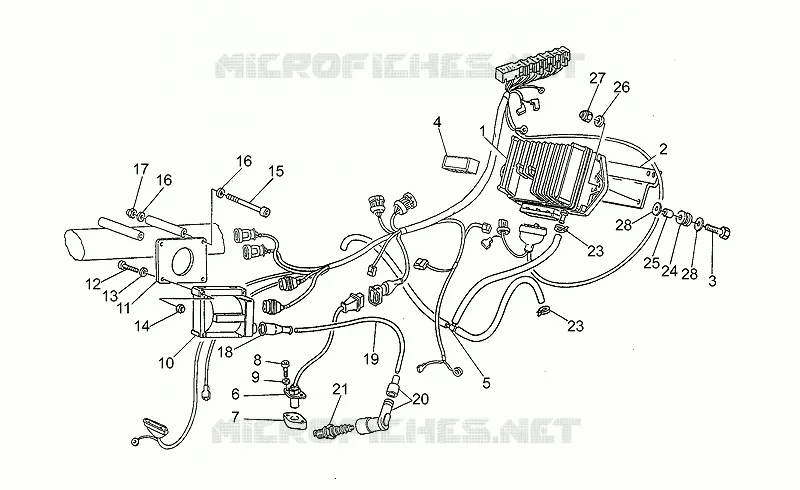

Find the detailed Digiplex ignition MOTO GUZZI LAVERDA SCARABEO diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original MOTO GUZZI LAVERDA SCARABEO part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
