Engine displacement
250
2
Model
SCARABEO
3
Year
2005
4
Trim
Scarabeo E2 (engine Piaggio)
5
Parts Catalog
Front body - Front mudguard
6
Parts Diagram
Parts Catalog
Rear caliper
by
Plate set and handbooks
Front body - Front mudguard
1
2
3
4
5
6
7
8
9
10
11
11
12
13
14
1
Front mudgard front side
AP8156162
Not Available
1
Front mudgard front side
AP8156265
Not Available
1
Front mudgard front side
AP8156153
Not Available
1
Front mudgard front side
AP8156198
Not Available
1
Front mudgard front side
AP8156130
Not Available
1
Garde-boue partie avant
AP8156261
£221,26 Unit Price incl. VAT
1
Garde-boue partie avant
AP8156263
£210,72 Unit Price incl. VAT
2
Front shield lockup
AP8139605
Not Available
3
LH hub cover, grey
AP8156132
Not Available
4
RH hub cover, grey
AP8156131
Not Available
5
Fixation Gard-b AV;
AP8134489
£36,32 Unit Price incl. VAT
6
Caoutchouc avec insert
AP8120531
£6,84 Unit Price incl. VAT
7
Clip M6
AP8102376
Not Available
8
Cable-guide
AP8144240
Not Available
9
Vis bride M6X16
AP8152278
£1,91 Unit Price incl. VAT
10
Caoutchouc
AP8120001
£5,32 Unit Price incl. VAT
11
Vis
AP8150426
£1,27 Unit Price incl. VAT
12
Rondelle
AP8150017
£1,88 Unit Price incl. VAT
13
Hex socket screw M8x40
AP8150171
Not Available
14
Front mudguard rear side
AP8156264
Not Available
14
Front mudguard rear side
AP8156266
Not Available
14
Front mudguard rear side
AP8156154
Not Available
14
Front mudguard rear side
AP8156129
Not Available
14
Front mudguard rear side
AP8156197
Not Available
14
Front mudguard rear side
AP8156262
Not Available
14
Front mudguard rear side
AP8156163
Not Available

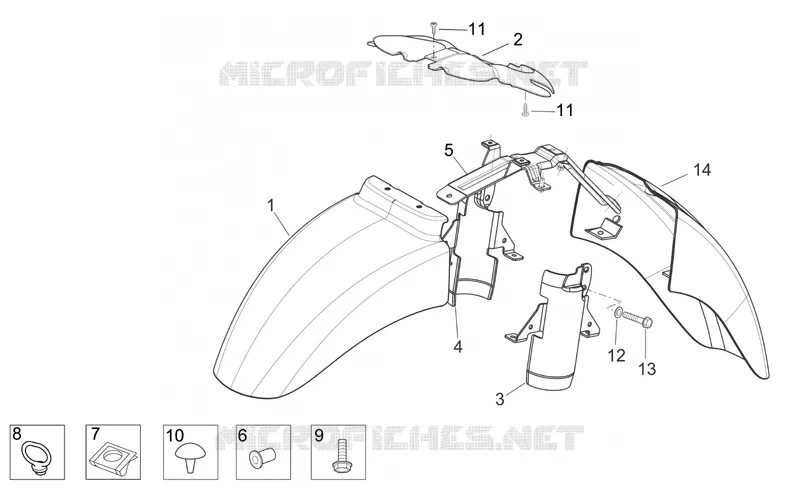

Find the detailed Front body - Front mudguard MOTO GUZZI LAVERDA SCARABEO diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original MOTO GUZZI LAVERDA SCARABEO part number.
