Parts Catalog
Fuel vapour recover system
6
Parts Diagram
Parts Catalog
Front body - Internal shield
by
Rear caliper
Fuel vapour recover system
1
2
3
4
5
6
7
7
8
8
9
9
9
10
11
12
13
13
14
15
16
17
18
19
20
1
"Raccord en ""Y"""
AP8120116
£33,00 Unit Price incl. VAT
2
Raccord 3 voies
AP8102727
£6,10 Unit Price incl. VAT
3
"""Purge"" soupape"
AP8106776
£76,50 Unit Price incl. VAT
4
Bride supp. soup.
AP8134650
£10,01 Unit Price incl. VAT
5
Valve support clamp
AP8146971
Not Available
6
Filtre à charbon
AP8102678
£41,63 Unit Price incl. VAT
7
Collier
AP8120179
£1,27 Unit Price incl. VAT
8
Fuel pipe 5,5x10
AP8120952
Not Available
9
Breather pipe 4x8
AP8220263
Not Available
10
Clip
AP8102375
£2,20 Unit Price incl. VAT
11
Collier serr. Tube
AP8102520
£2,08 Unit Price incl. VAT
12
Vis bride
AP8152273
£1,88 Unit Price incl. VAT
13
Collier
AP8101595
£3,97 Unit Price incl. VAT
14
Collier
AP8102688
£65,77 Unit Price incl. VAT
15
Collier
AP8102719
£84,05 Unit Price incl. VAT
16
Vis bride
AP8152283
£2,17 Unit Price incl. VAT
17
Douille tableau de bord
AP8121741
£1,56 Unit Price incl. VAT
18
Vis bride
AP8152280
£2,48 Unit Price incl. VAT
19
Ecrou autobloqu.
AP8152299
£1,88 Unit Price incl. VAT
20
Clip M6
AP8102376
Not Available

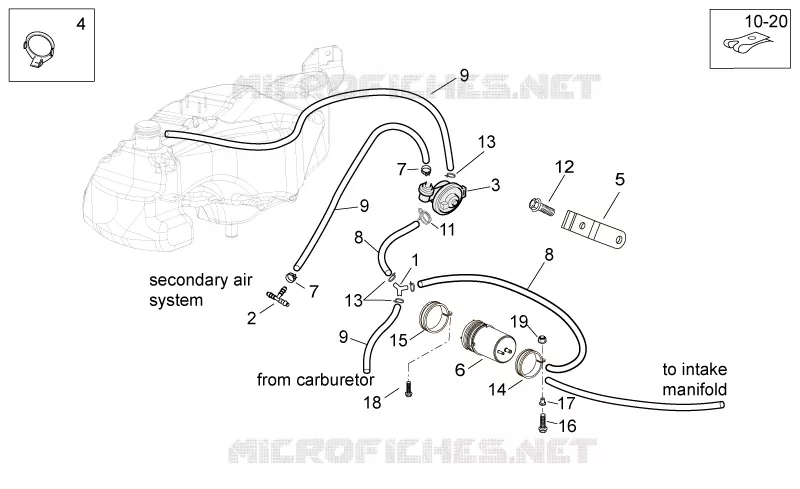

Find the detailed Fuel vapour recover system MOTO GUZZI LAVERDA SCARABEO diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original MOTO GUZZI LAVERDA SCARABEO part number.
