Engine displacement
250
2
Model
SCARABEO
3
Year
2005
4
Trim
Scarabeo E2 (engine Piaggio)
5
Parts Catalog
Headlight
6
Parts Diagram
Parts Catalog
Lock hardware kit
by
Water cooler
Headlight
1
2
3
4
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
25
1
screw
AP8124790
Not Available
2
Inox self tapping screw
AP8124770
Not Available
3
screw
AP8124771
Not Available
4
Square nut
AP8124791
Not Available
5
LH Front turn ind.harness
AP8124772
Not Available
6
RH Front turn ind.harness
AP8124773
Not Available
7
Glace clign. AV G;
AP8124774
£10,72 Unit Price incl. VAT
8
Glace clign. AV D;
AP8124775
£10,72 Unit Price incl. VAT
9
Rubber spacer
AP8124776
Not Available
10
Anti-condensate rubber
AP8124777
Not Available
11
Square nut
AP8124778
Not Available
12
Headlight wiring w/harness
AP8124779
Not Available
13
Bague chromée;
AP8124780
£18,83 Unit Price incl. VAT
13
Painted ring nut
AP8163201
Not Available
14
Parabole complète;
AP8127129
£121,01 Unit Price incl. VAT
14
Headlight unit, complete
AP8124782
Not Available
14
Parabole complète;
AP8124781
£121,01 Unit Price incl. VAT
15
Joint;
AP8124783
£12,97 Unit Price incl. VAT
16
Wiring clip
AP8124784
Not Available
17
LH front turn indicator
AP8127814
Not Available
17
LH front turn indicator
AP8127676
Not Available
18
RH front turn indicator
AP8127813
Not Available
18
RH front turn indicator
AP8127677
Not Available
19
Lampholder
AP8224209
Not Available
20
Headlight cap, chr.
AP8124787
Not Available
20
Headlight cap, chr.
AP8127127
Not Available
21
Adjuster screw
AP8124788
Not Available
22
Headlight
AP8127666
Not Available
22
Headlight, chr.
AP8127641
Not Available
22
Headlight, chr.
AP8127812
Not Available
22
Headlight
AP8124616
Not Available
23
Tyre
0000000
Not Available
24
Tyre
0000000
Not Available
25
Tyre
0000000
Not Available

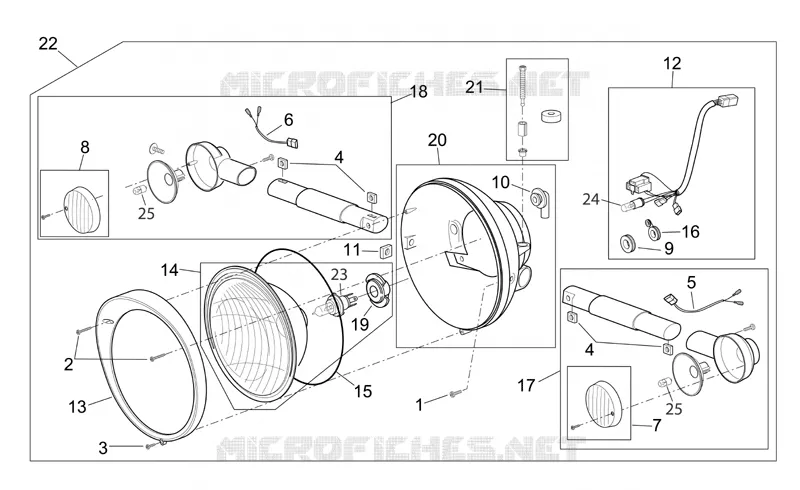

Find the detailed Headlight MOTO GUZZI LAVERDA SCARABEO diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original MOTO GUZZI LAVERDA SCARABEO part number.
