Engine displacement
250
2
Model
SCARABEO
3
Year
2005
4
Trim
Scarabeo E2 (engine Piaggio)
5
Parts Catalog
LH Controls
6
Parts Diagram
Parts Catalog
Acc. - Top/cases, side cases
by
Cooling system
LH Controls
1
2
3
4
5
6
6
6
7
8
9
10
11
12
13
14
15
16
17
1
Upper LH light control cover
AP8124803
Not Available
2
Lower LH light control cover
AP8124804
Not Available
3
Capuchon poussoir clignotants
AP8127180
£10,67 Unit Price incl. VAT
4
Handgrip pair, black
AP8118643
Not Available
4
Handgrip pair, black
AP8118657
Not Available
5
Pump revision kit
AP8133810
Not Available
5
Pump revision kit
AP8113862
Not Available
6
Vis
AP8152268
£1,88 Unit Price incl. VAT
7
Brake lever
AP8118641
Not Available
7
Levier frein
AP8133809
£53,33 Unit Price incl. VAT
8
Pump cover screw
AP8113859
Not Available
8
Vis couvercle pompe
AP8133807
£7,28 Unit Price incl. VAT
9
Couvercle pompe;
AP8113860
£29,60 Unit Price incl. VAT
9
Couvercle pompe
858492
£16,98 Unit Price incl. VAT
10
Pivot levier frein
AP8213584
£13,28 Unit Price incl. VAT
10
Vis levier
AP8125757
£12,31 Unit Price incl. VAT
11
Ecrou
AP8213298
£17,00 Unit Price incl. VAT
11
Écrou
AP8213585
£7,48 Unit Price incl. VAT
12
Cavalier levier frein
AP8113637
£33,77 Unit Price incl. VAT
12
Cavalier levier frein
AP8213586
£33,77 Unit Price incl. VAT
13
Vis calotte
AP8213582
£12,65 Unit Price incl. VAT
13
Vis calotte
AP8213299
£3,38 Unit Price incl. VAT
14
stop Button
AP8127305
Not Available
15
Maît.cyl. frein AR;
AP8133558
£274,58 Unit Price incl. VAT
15
Rear master cylinder
AP8133733
Not Available
16
Piston cpl.;
AP8113861
£51,17 Unit Price incl. VAT
17
Déviateur feux gche
AP8127225
£179,82 Unit Price incl. VAT
17
Déviateur feux gche
AP8127092
£163,74 Unit Price incl. VAT

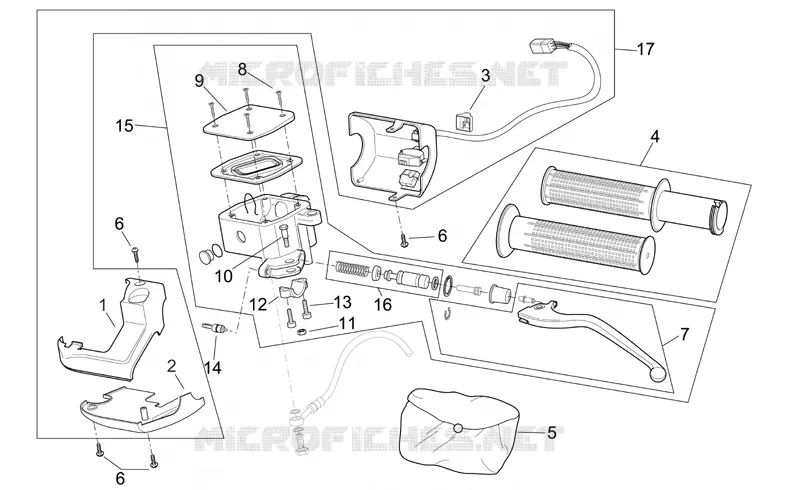

Find the detailed LH Controls MOTO GUZZI LAVERDA SCARABEO diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original MOTO GUZZI LAVERDA SCARABEO part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
