Transmission cage for MOTO GUZZI LAVERDA SCARABEO V7 II Stone ABS from 2016

Free shipping for all orders to United Kingdom over £150! See conditions.

Transmission cage

1

Transmission cage

2A000210

Not Available

2

Bague 6,6x9x13

GU19002020

£8,24 Unit Price incl. VAT

3

Sensor

B063269

Not Available

4

Roulement à billes

2A000097

£10,37 Unit Price incl. VAT

5

ECROU

2A000306

£3,80 Unit Price incl. VAT

6

VIS

2A000241

£0,48 Unit Price incl. VAT

7

Roulement à billes 25x52x15

GU92201226

£50,18 Unit Price incl. VAT

8

RONDELLE

873928

£10,54 Unit Price incl. VAT

9

Vis

B013608

£1,98 Unit Price incl. VAT

10

Roulement à billes 61905 - 25X42X9

857250

£11,84 Unit Price incl. VAT

11

Ball bearing

2A000375

£19,43 Unit Price incl. VAT

12

Roulement à billes 20x52x15

GU92201822

£33,05 Unit Price incl. VAT

13

Gasket ring 25X40X7

GU90412541

£22,12 Unit Price incl. VAT

14

Bague d'étanchéité 14x24x7

GU90401424

£34,70 Unit Price incl. VAT

15

Joint

B063025

£4,70 Unit Price incl. VAT

16

Gear box assy

2A0001965

£3 391,48 Unit Price incl. VAT

17

Breather plug

2A000438

£10,16 Unit Price incl. VAT

18

Joint

GU01528930

£4,21 Unit Price incl. VAT

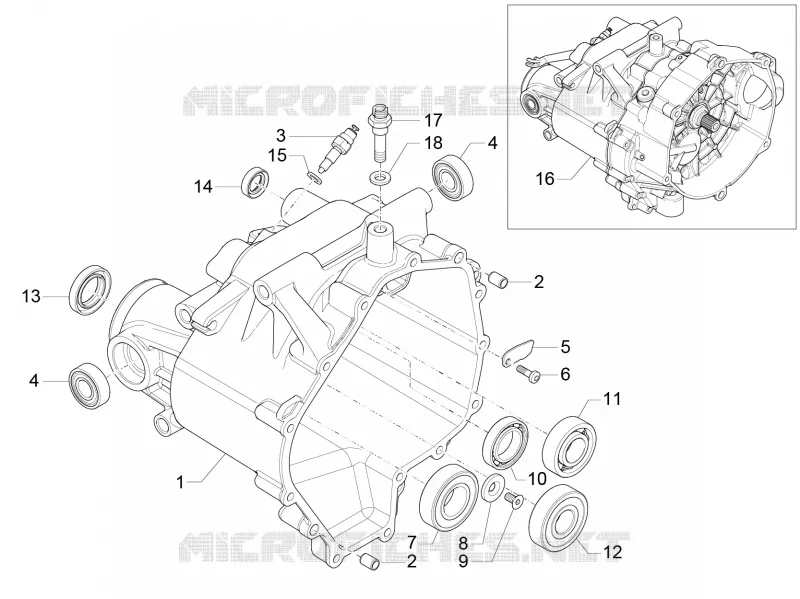

Find the detailed Transmission cage MOTO GUZZI LAVERDA SCARABEO diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original MOTO GUZZI LAVERDA SCARABEO part number.

The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
