Cylinder head for MOTO GUZZI LAVERDA SCARABEO V7 II Stone ABS from 2016

Free shipping for all orders to United Kingdom over £150! See conditions.

Cylinder head

1

RH head

8872724

Not Available

2

LH head

8872754

Not Available

3

Valve guide

GU61036801

£44,20 Unit Price incl. VAT

4

Anneau élastique

GU90353009

£1,02 Unit Price incl. VAT

5

Vis sans tête

GU96506042

£10,42 Unit Price incl. VAT

6

Tampon

B063111

£5,82 Unit Price incl. VAT

7

Ecrou

GU19021920

£10,73 Unit Price incl. VAT

8

Joint spi

GU19037820

£24,59 Unit Price incl. VAT

9

Couvre-culasse

887523

£154,12 Unit Price incl. VAT

10

Joint couvercle

887002

£6,65 Unit Price incl. VAT

11

Nut M10X1,5

GU92603010

£1,54 Unit Price incl. VAT

12

Ecrou colonne

GU13021900

£15,36 Unit Price incl. VAT

13

Rondelle 10,5X18X0,8

GU95129180

£1,02 Unit Price incl. VAT

14

Vis sans tête M10x214

GU96510214

£30,86 Unit Price incl. VAT

15

Vis sans tête M10x182

GU96510181

£29,15 Unit Price incl. VAT

16

Vis TCEI M6x25

GU98692325

£5,23 Unit Price incl. VAT

17

Cale

GU19032980

£2,75 Unit Price incl. VAT

18

Bague

GU19021360

£19,37 Unit Price incl. VAT

19

Joint tête-cylindre

B063099

£26,86 Unit Price incl. VAT

20

Vis sans tête

976898

£19,61 Unit Price incl. VAT

21

Rondelle élastique

GU61270300

£1,70 Unit Price incl. VAT

22

Bouchon

GU93180245

£2,63 Unit Price incl. VAT

23

Caoutchouc pot

AP8144071

£13,10 Unit Price incl. VAT

24

Couvercle bougie

887279

£17,72 Unit Price incl. VAT

25

Vis

887483

£7,78 Unit Price incl. VAT

26

Washer

969973

Not Available

27

Collier

AP8201358

£0,60 Unit Price incl. VAT

28

Tuyau reniflard radiateur

2B001204

£16,75 Unit Price incl. VAT

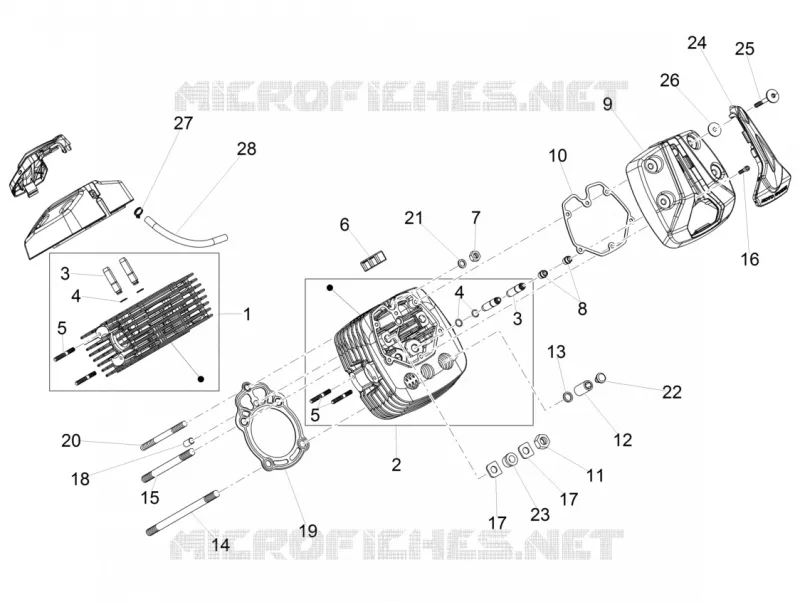

Find the detailed Cylinder head MOTO GUZZI LAVERDA SCARABEO diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original MOTO GUZZI LAVERDA SCARABEO part number.

The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
