Engine displacement
750
2
Model
V7
3
Year
2016
4
Trim
V7 II Stone ABS
5
Parts Catalog
Electrical system I
6
Parts Diagram
Parts Catalog
Timing system
by
Generator - Regulator
Electrical system I
1
2
3
4
5
5
6
6
7
7
8
8
9
10
11
11
11
12
13
14
15
16
17
18
19
20
21
22
1
Câblage principal
2D000108
£335,39 Unit Price incl. VAT
2
Détec. temper. air
AP8124936
£82,98 Unit Price incl. VAT
3
Bobine H.T.
642034
£57,73 Unit Price incl. VAT
4
Bobine H.T.
641901
£118,08 Unit Price incl. VAT
5
Ecrou autobloqu.
AP8152299
£1,88 Unit Price incl. VAT
6
CABLE H.T.
080341
Not Available
7
HV terminal
641725
Not Available
8
CAPUCHON
641040
£7,73 Unit Price incl. VAT
9
Gaine
CM0074D0
£4,51 Unit Price incl. VAT
10
Gaine
CM0074C9
£2,29 Unit Price incl. VAT
11
Capuchon bougie
2D000247
£42,97 Unit Price incl. VAT
11
Spark plug cap
2D000005
Not Available
11
Sparkplug cap
2D000205
Not Available
12
Bougie
887481
£18,19 Unit Price incl. VAT
13
Diode
887948
£73,03 Unit Price incl. VAT
14
Encoder sensor
832029
Not Available
15
Vis M5x12
GU98682212
£1,06 Unit Price incl. VAT
16
Rondelle 5,3x10x0,8
GU95008205
£1,26 Unit Price incl. VAT
17
O-ring
GU90706141
Not Available
18
Collier, noir
AP8120416
£1,00 Unit Price incl. VAT
19
Collier 2,4x92
GU49609601
£0,90 Unit Price incl. VAT
20
Collier 3,6x20,6
GU14609650
£1,02 Unit Price incl. VAT
21
Cable HT
2D000207
£20,69 Unit Price incl. VAT
22
Cable HT
2D000206
£20,69 Unit Price incl. VAT

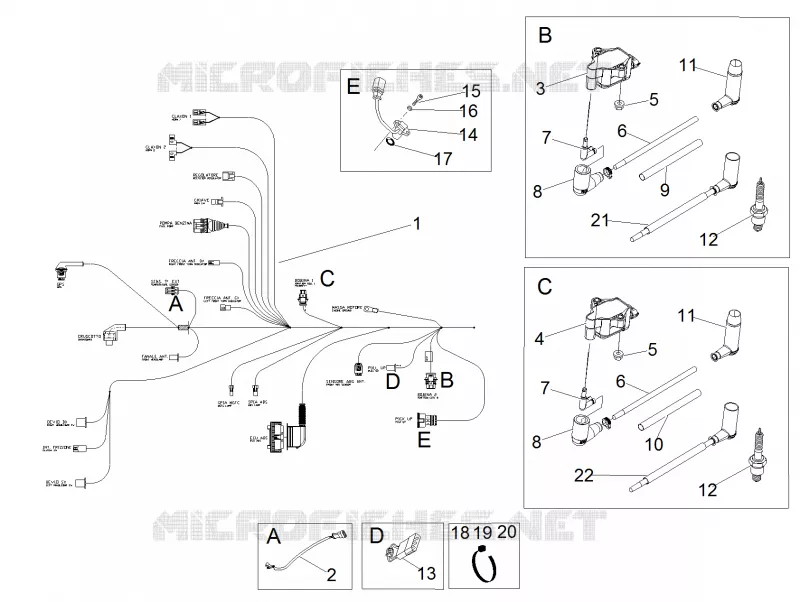

Find the detailed Electrical system I MOTO GUZZI LAVERDA SCARABEO diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original MOTO GUZZI LAVERDA SCARABEO part number.
