Gear box for MOTO GUZZI LAVERDA SCARABEO V7 II Stone ABS from 2016

Free shipping for all orders to United Kingdom over £150! See conditions.

Gear box

1

Arbre primaire

2A000230

£133,58 Unit Price incl. VAT

2

Rondelle

1A000566

Not Available

3

Engr. 1e sur sec.

B017470

£96,35 Unit Price incl. VAT

4

MOYEU

849308

£31,02 Unit Price incl. VAT

5

Engr. 5e sur prim.

1A000360

Not Available

6

RONDELLE

849424

£3,05 Unit Price incl. VAT

7

Anneau élastique

1A002604

Not Available

8

ENGRANAGE

1A000436

Not Available

9

Rondelle d'appui

B015040

£2,40 Unit Price incl. VAT

10

MOYEU

974162

£34,78 Unit Price incl. VAT

11

Engr. 6e sur prim.

1A000361

Not Available

12

RONDELLE

849396

£3,25 Unit Price incl. VAT

13

CIRCLIPS

974165

£2,95 Unit Price incl. VAT

14

Engr. 2e sur prim.

1A000365

Not Available

15

Secondary gearbox shaft

2A000203

£107,22 Unit Price incl. VAT

16

Engr. 2e sur sec.

1A000366

Not Available

17

RONDELLE

849309

£3,13 Unit Price incl. VAT

18

Gear 6a Z=24

1A000370

Not Available

19

RONDELLE

849310

£6,13 Unit Price incl. VAT

20

Engr. 3e sur sec.

1A000367

Not Available

21

Engr. 4e sur sec.

1A000368

Not Available

22

Engr. 5e sur sec.

1A000369

Not Available

23

Arbre primaire complet

2A000199

£188,28 Unit Price incl. VAT

24

Arbre secondaire cpl.

2A000202

£245,94 Unit Price incl. VAT

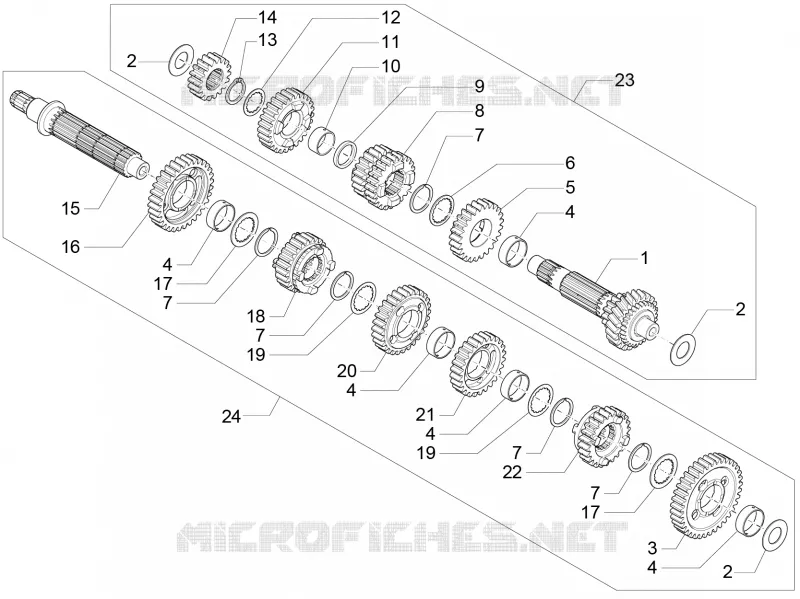

Find the detailed Gear box MOTO GUZZI LAVERDA SCARABEO diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original MOTO GUZZI LAVERDA SCARABEO part number.

The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
