Engine displacement
125
2
Model
SCARABEO
3
Year
2003
4
Trim
Scarabeo E2 (engine Piaggio)
5
Parts Catalog
Carburettor III
6
Parts Diagram
Parts Catalog
Acc. - Windshields
by
Handlebar
Carburettor III
1
2
3
4
5
6
7
8
9
10
10
1
Air intake
AP8580164
Not Available
2
Hose clamp
AP8580220
Not Available
3
screw
AP8580025
Not Available
4
screw
AP8580016
Not Available
5
screw
AP8580027
Not Available
6
Heater
AP8580039
Not Available
7
Spring
AP8580026
Not Available
8
pipe
AP8580146
Not Available
9
By-pass pipe
AP8575003
Not Available
10
Hose clamp
AP8575004
Not Available

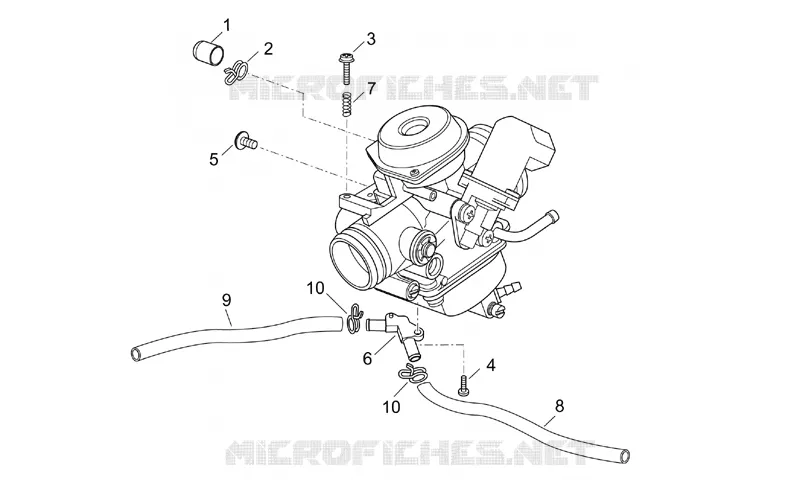

Find the detailed Carburettor III MOTO GUZZI LAVERDA SCARABEO diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original MOTO GUZZI LAVERDA SCARABEO part number.
