1
Engine displacement
350
2
Model
V35
3
Year
1986
4
Trim
V 35 II
5
Parts Catalog
Rear wheel
6
Parts Diagram
Parts Catalog
Front wheel
by
Front/rear shock absorber
Rear wheel
1
2
3
4
5
6
7
8
9
10
11
12
1
Rear wheel, white
GU27630636
Not Available
1
Rear wheel, dk.grey
GU27630686
Not Available
1
Rear wheel, lt.grey
GU27630687
Not Available
2
RH rubber coupling
GU19632501
£15,76 Unit Price incl. VAT
3
LH rubber coupling
GU19632502
£13,22 Unit Price incl. VAT
4
Bearing
GU92204218
£73,26 Unit Price incl. VAT
5
Bearing
GU92204217
£60,25 Unit Price incl. VAT
6
Bearing internal spacer
GU19633935
Not Available
7
Rear wheel spindle
GU19633360
Not Available
8
Washer
GU14634400
Not Available
9
Nut M6x1,5
GU92602316
£1,45 Unit Price incl. VAT
10
Guard
GU19636400
Not Available
11
Counterweight
GU14616150
£18,94 Unit Price incl. VAT
12
Spacer
GU19634100
Not Available

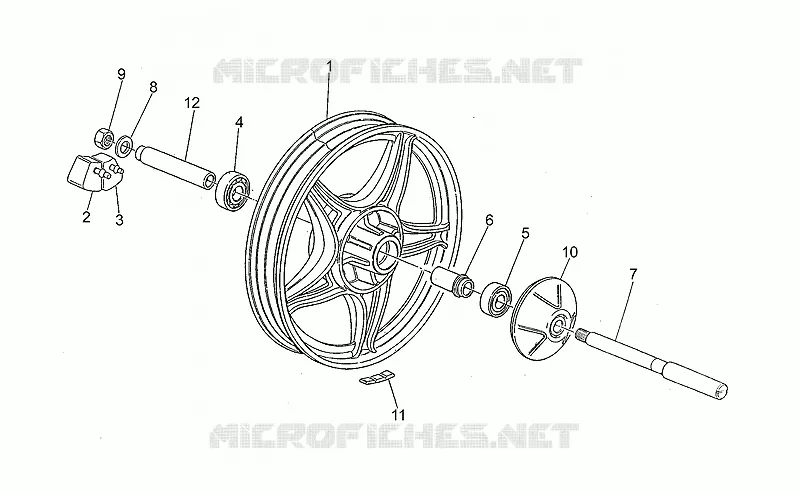

Find the detailed Rear wheel MOTO GUZZI LAVERDA SCARABEO diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original MOTO GUZZI LAVERDA SCARABEO part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
